How to Install and Configure an Oracle Mart

In the previous versions, CA ERwin DM connected to the Mart database through the database client software. Now, the application connects to the Mart database through a web server. The database client software is no longer required.

The Mart comprises the following components:

Database

Stores the user data for the Workgroup Edition. You can use an Oracle 10g, 11g, or 12c database for the Mart database. If you are using Oracle 12c, you can use a pluggable database. You must use a new database and not an existing database that was created for an older version of the data modeling tool.

Applications

Includes a web-based component named CA ERwin Mart Administrator that helps you manage the Mart through a web console.

Web server

Hosts CA ERwin Mart Administrator. You can use a web server of your choice. If you have not installed a web server, use the ERwin Mart Server option and install Tomcat.

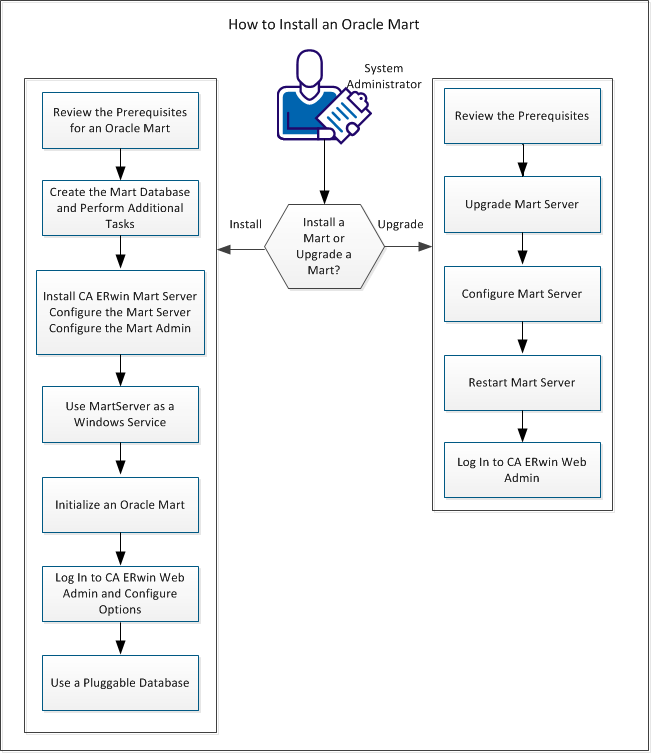

Complete the following steps in the same order to install and configure the Mart:

1. Review the prerequisites of an Oracle Mart.
2. Create the Mart Database and perform the additional tasks.
3. Install CA ERwin Mart Server.
4. Use MartServer as a Windows Service.
5. Initialize an Oracle Mart.
6. Log in to CA ERwin Mart Administrator and configure settings.
7. Use a Pluggable Database.

Complete the following steps to upgrade a Mart from any earlier release of r9 series to the latest release:

1. Review the Prerequisites.
2. Upgrade the Mart Server.
3. Configure the Mart Server.
4. Restart the Mart Server.
5. Log In to CA ERwin Web Admin.
