erwin Mart Portal architecture follows a JAR-based, multi-product structure.

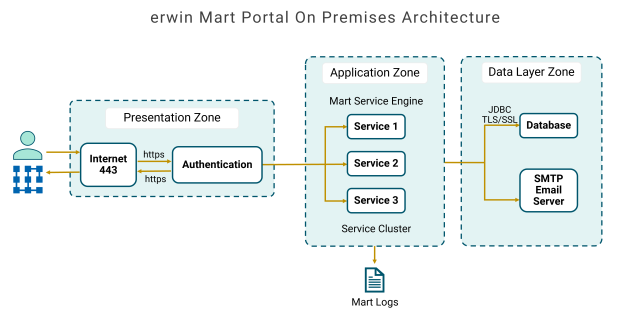

The following diagram explains erwin Mart Portal architecture:
The mart comprises the following components:
- Database
-
Stores the user data for the Workgroup Edition.
-
Database
Versions
Additional Details
Oracle 18c, 19c, 21c, and Oracle Cloud
PostgreSQL 12.x, 13.x, 14.x, 15.x, and 16.x You can also use PostgreSQL for Amazon RDS. SQL Server Microsoft SQL Server 2017, 2019, 2022, and 2025 You can also use Microsoft SQL Azure and Amazon RDS SQL Server. - Applications
-
Includes the following web-based components, erwin Mart Portal and erwin ER360 that helps you manage the Mart and manage, review, and govern data models through a web console respectively.
- Web server
-
Hosts erwin Mart Portal and erwin ER360. By default, erwin Mart Portal installation process installs Apache Webserver.
