Adding Export to erwin DI Jobs

An Export to DI job converts a model to erwin DI compatible format and then,

  • exports the model to the Metadata Manager

  • exports the source and target column data from a dimensional model into the Mapping Manager

    Once source and target column data is exported, any updates made to them are not exported when the job runs again.

  • If the model has an associated NSM file, it exports the file to the Business Glossary Manager

For more information about data sharing between erwin Data Modeler (erwin DM) and erwin Data Intelligence(erwin DI), refer to the Data Sharing topic.

By default the DM Connect for DI app opens in the Calendar view. You can toggle the page view between the List View () or Calendar View () using the respective buttons on the page toolbar.

To schedule jobs, follow these steps:

  1. In the header pane, click and then click DM Connect for DI.

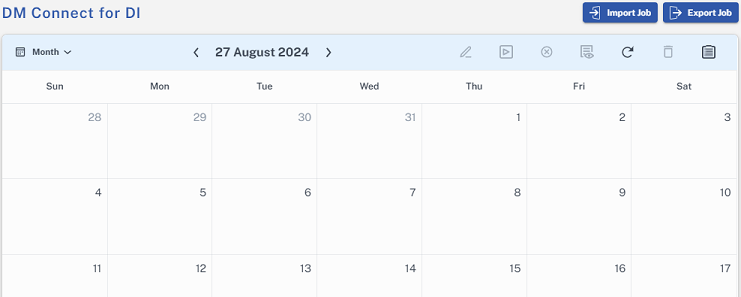

    The DM Connect for DI page opens.

  2. Click a suitable calendar slot or click Export Job.
  3. Click Export to DI.

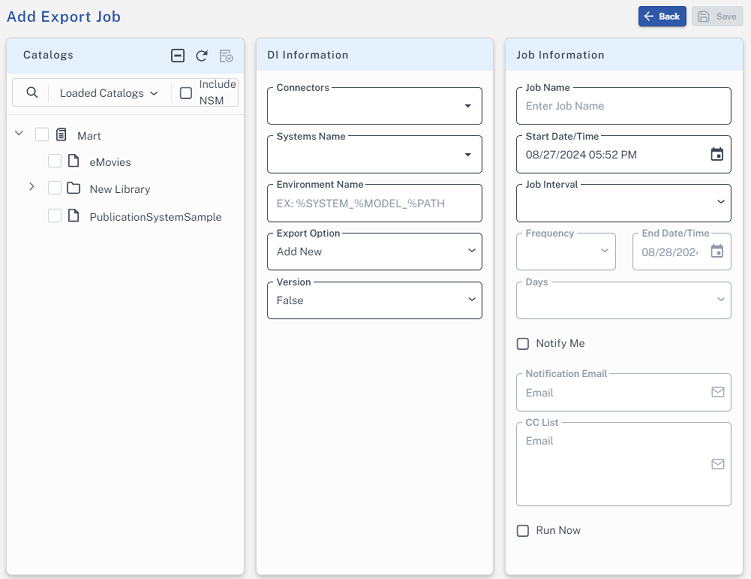

    The Add Export Job page appears.

  4. Set up job parameters as follows:

    Tab

    Field

    Description

    CatalogsCatalog Tree

    Select models from mart catalog to export.

    Before you select models, you can use the All Catalogs or Loaded Catalogs to display all available catalogs or only the expanded catalogs respectively.

    Apart from that, after you select catalogs, you can click to view only the selected catalogs in the Catalogs section.

    Include NSMSelect whether naming standards must be exported.
    A catalog named by the NSM file is created under Business Glossary Manager > DM NSM Files custom asset.

    Ensure that the DM NSM Files asset is enabled in erwin DI > Business Glossary Manager Settings.

    DI InformationConnectorsSelect a configuration to use for the export job.
    Systems NameEnter a system name. This corresponds to System in Metadata Manager.
    Environment Name

    Use the predefined macros to set the environment name. This corresponds to Environment in Metadata manager.

    For system and environment names, following special characters are allowed:
    • System: - (hyphen), _ (underscore), and space
    • Environment: @ (at sign), $ (dollar sign), & (ampersand), / (slash mark), - (hyphen), _ (underscore), and space
      • All other special characters are replaced with _ (underscore).
    Export Option

    Select a suitable export option:

    • Add New:

      • If an environment exists, this option adds any new tables or columns to it.

      • If an environment does not exist, this option creates an environment and adds tables and columns to it.

    • Update Existing + Add New:

      • If the existing model objects have changed, this option exports the updates to the existing model objects in erwin DI .

      • Also, it exports any new objects in the model to erwin DI .

    • Update Existing + Add New + Invalidate:

      Along with the functionality of Update Existing + Add New option, this option invalidates any deleted tables or columns.

    • Delete & Reload:
      This option deletes all the tables and columns. Then, it exports them again.

    VersionSelect whether a version of an existing environment must be created. This archives the existing environment.

    Job Information

    Job Name

    Specify a job name.

    Start Date/Time

    Select the date and time at which the job must start.

    Job Interval

    Select a suitable frequency at which the job must run. You can set the job to run once or recur daily, weekly, monthly, or yearly. You can also set up custom recurrence for jobs.

    Frequency

    Select the hourly frequency at which the job should run.

    This property is available only when you set the Job Interval to Recurring.

    End Date/Time

    If you set up recurring jobs, select the date and time at which the recurrence must end.

    Days

    Select the days of the week on which the job should run. The days available here depend on the End Date/Time.

    This property is available only when you set the Job Interval to Recurring.

    Notify Me

    Select whether a notification is sent to you when the job status changes.
    This enables the Notification Email and CC List fields.

    Notification Email

    Specify the email address at which you want to receive the notification.

    CC List

    Specify a semi-colon-separated list of email addresses that must receive the job notification.

    Run Now

    Select the check box to run the job immediately.

  5. Click Save.
    The job is added to the calendar for execution with its Job State set to Scheduled.

Once a job is set up, you can use the following options on it:

  • Run Job: Use this option to run a scheduled recurring job immediately.
  • Manage Job: Use this option to modify an existing scheduled job. If you modify a job:

    • before its run schedule, the changes take effect when the job runs

    • while it is running, the job is canceled, and changes are saved. They take effect when the job runs next time.

    • after it is past its schedule, the job runs according to the new schedule.

  • Refresh Job: Use this option to refresh the job state.
  • Cancel Job: Use this option to cancel a scheduled or running job.
  • Delete Job: Use this option to delete a job from the job list.
  • View Log: Use this option to view a job's log. In case of failures, you can use the log to troubleshoot.
