DI Configurations

To import and export data models, data sources, and naming standards using DM Connect for DI, you need to configure your erwin Data Intelligence (erwin DI) application in erwin Mart Portal.

To configure erwin DI, follow these steps:

  1. Go to Application Menu > Settings > DI Configurations.

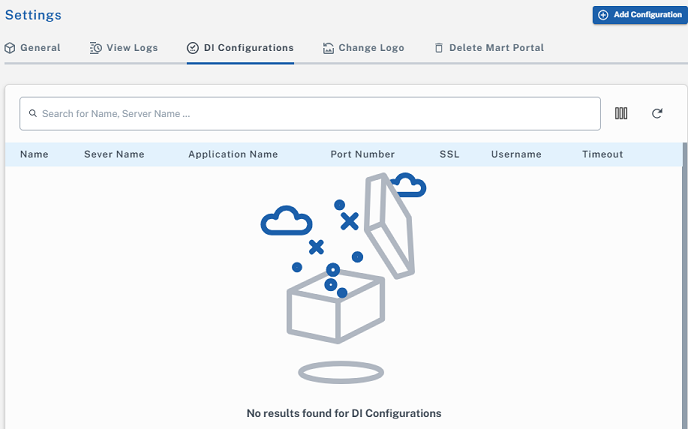

    The DI Configurations page appears.

  2. Click Add Configuration.

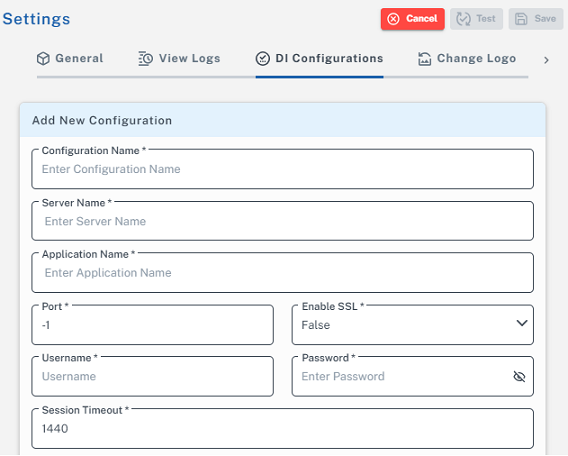

    The Add New Configuration section appears.

  3. Configure your erwin DI connection parameters as follows:

    Field

    Description

    Configuration Name

    Specify a unique name for the configuration

    Server Name

    Specify the server address, where erwin DI is installed

    Application Name

    Specify the name of your erwin DI Application

    Port

    Specify the port on your server that is used for erwin DI
    Enable SSL

    Specify whether you want to connect to the server through a secured connection
    Username

    Specify your erwin DI user name
    Password

    Specify your erwin DI password
    Session Timeout

    Specify erwin DI's session time out duration in minutes
  4. Click Test.
  5. Click Save.
    Your connection is tested and saved. You can set up multiple erwin DI configurations and use them as required.
