Enabling IIS

In IIS-enabled environments, erwin Mart Portal and the configuration will work automatically.

For environments where IIS is not enabled, to enable IIS, follow these steps:

  1. On the machine where you have installed and configured erwin Mart Portal, open Internet Information Services (IIS) Manager.

  2. Under Browse Website, click the appropriate option.

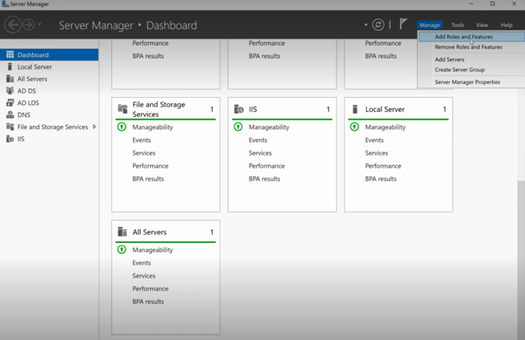

  3. Open Server Manager and click Manage.

  4. Click Add Roles and Features.

    The Add Roles and Features Wizard appears.

    Follow these steps:

    1. On the Before you Begin tab, click Next.
    2. On the Installation Type tab, click Role-based or Feature-based Installation.
    3. On the Server Selection tab, click Default.

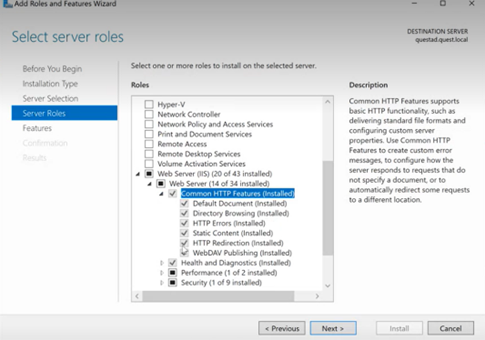

    4. On the Server Roles tab, select Web Server (IIS) > Common HTTP Features (Installed). Also, ensure that HTTP Redirection is selected.
    5. Click Install.

    Once done, the Default Web Site option is available.

  5. Download and install ARR 3.0.
    Ensure that you use the 64-bit installer.

  6. Download and install URL Rewrite Module 2.1.
    Ensure that you use the 64-bit installer.

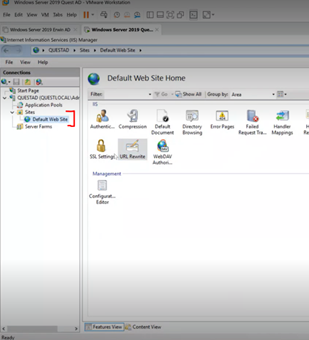

  7. In the Internet Information Services (IIS) Manager, click Default Web Site.


  8. Click URL Rewrite.

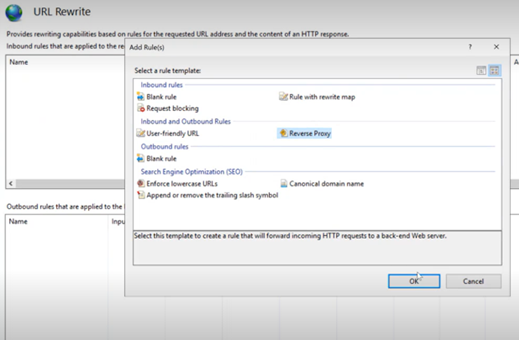

  9. Under Actions, click Add Rules.

  10. Click Reverse Proxy.

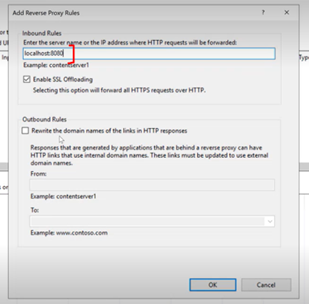

    The Add Reverse Proxy Rules screen appears.

  11. Under Inbound Rules, add the server name or the IP address and port number of the server where you have installed and configured erwin Mart Portal.

    For example, localhost:8080.

    It will work with any IP address/port number and not just localhost and 8080. Do not use port that is already in use for another purpose.

  12. Under Outbound Rules,

    1. In the From field, add the server name or the IP address and port number of the server where you have installed and configured erwin Mart Portal. For example, localhost:8080.

    2. In the To field, add the server name or the IP address of the server where you have installed and configured erwin Mart Portal. For example, localhost.

  13. Click OK.
    This will redirect you to Apache Server console.

  14. In the Internet Information Services (IIS) Manager, right-click Default Web Site and click Refresh.

  15. Right-click Default Web Site and click Manage Website > Restart.
    This completes IIS configuration.
