erwin Data Intelligence Configuration

To use DM Connect for DI, you need to configure your erwin Data Intelligence (DI ) application in erwin Mart Portal. This is the application to which DM Connect for DI would export data models, data sources, and naming standards.

To configure erwin DI , follow these steps:

  1. Go to Application Menu > Settings > DI Configurations.
    The DI Configuration page appears.

  2. Click .

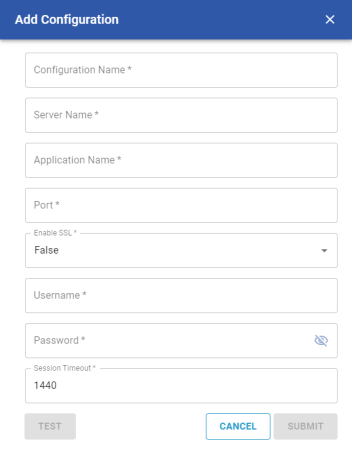

    The Add Configuration page appears.

  3. Configure your erwin DI ’s connection parameters as follows:

    Field

    Description

    Configuration Name

    Specify a unique name for the configuration.

    Server Name

    Specify the server address, where erwin DI is installed.

    Application Name

    Specify the name of your erwin DI Application.

    Port

    Specify the port on your server that is used for erwin DI .
    Enable SSL

    Specify whether you want to connect to the server through a secured connection.
    Username

    Specify your erwin DI user name.
    Password

    Specify your erwin DI password.
    Session Timeout

    Specify the erwin DI 's session time out duration in minutes.
  4. Click Submit.
    Your connection is tested and saved. You can set up multiple erwin DI configurations and use them as required.
