Browse Metadata

After harvesting data models to erwin ER360, you can browse through the metadata in both, physical and logical modes. The harvested models are listed in a tree structure in the Metadata pane, where you can either select the model or drill down and select objects to view their information. You can also view ER diagrams and Data Flow Impact Analysis of models. Go to Application Menu > Browse Metadata.

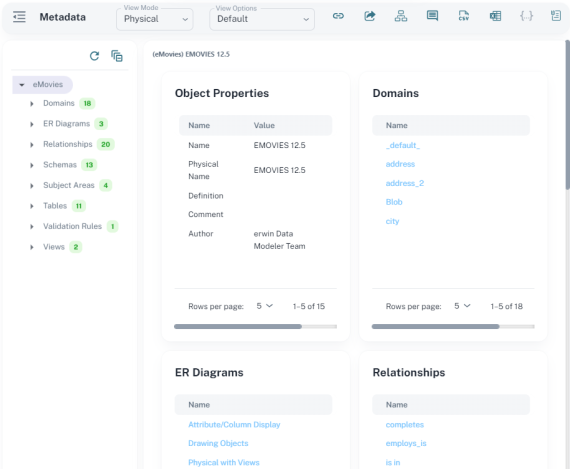

The Metadata page appears.

Viewing Model Metadata

In the Metadata pane, select a model.
The selected model's information appears.

The count of each object type in the model appears in the Metadata pane. Use the following options based on your preferences or requirements:

View Mode: Select whether you want to view the logical or physical view of the model.
View Options: Select whether you want to view information in the default or a user-defined view.

Viewing Model Object's Metadata

To drill down to an object's metadata, expand the object type and select an object.

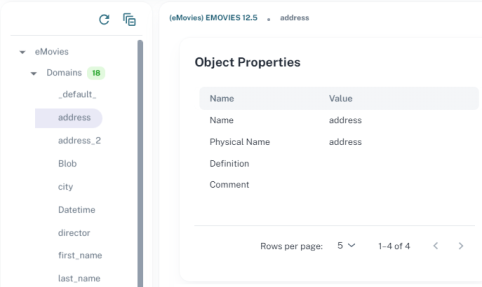

For example, expand Domains and select address.

Information about the domain's columns and properties appears.

Viewing Object's Data Flow Impact Analysis

To view the Data Flow Impact Analysis of the domain, click .

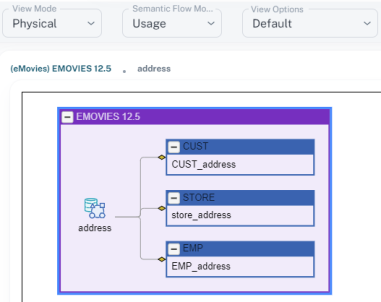

By default, the Usage view opens.

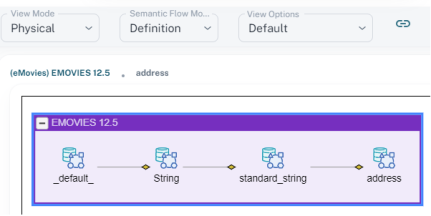

To switch to the Definition view, click Semantic Flow Mode and select Definition.

Viewing ER Diagrams

To view ER diagrams available in the model, follow these steps:

In the Metadata pane, click ER Diagrams.

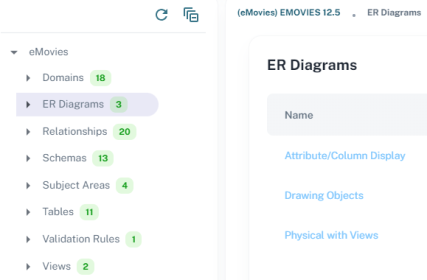

A list of ER diagrams appears.
Under ER Diagrams on the right side, click a diagram.
The selected ER Diagram opens.

This ER diagram is similar to the way it is displayed in erwin Data Modeler.

You can control the display levels of the diagram using the buttons on the toolbar.

Any changes you make to the diagram here are not preserved in the model.

Apart from the above features and options, you can use the options, such as comments, collaboration, and reports.

The following table describes these options:

Option	Description
	Use this option to copy the link of selected object.
	Use this option to send the link of the selected object as an email. Ensure that you have configured SMTP settings before using this option.
	Use this option to add comments, endorsements, warnings, and certifications to an object.
	Use this option to download the selected object's metadata as a set of CSV files.
	Use this option to download the selected object's metadata as a set of XLSX files.
	For JSON models or objects, use this option to download JSON file.
	Use this option to attach files or links to the selected object. Allowed file types are, CSV, DOC, DOCX. JPEG, JPG, JFIF, PDF, PNG, AND XLSX; with a maximum size of of 2MB.
