Standard Macros

This set comprises the bulk of the new macros in erwin Data Modeler. They are usable in all, or almost all, processes in the product.

This section contains the following topics

Access_DatabaseName

Access_Datatype

AllowAlterDatatype

AreAllOwneesCreated

AreAllOwneesDeleted

AreStringsEqual

Choose

ClearAllGlobalFlags

ClearGlobalFlag

ClearLocalFlag

ConversionFunction

DatabaseConnection

Date

DBMSVersion

Decrement

Default

EnumProperty

EnumProperty2

Equal

Execute

ExecuteTest

Fail

ForEachFKColumn

ForEachMigratingColumn

ForEachOfType

ForEachOwnee

ForEachOwneeFrom

ForEachOwneeThrough

ForEachProperty

ForEachProperty.IsInherited

ForEachProperty.Type

ForEachProperty.Value

ForEachPropertyValue

ForEachPropertyValue.Value

ForEachReference

ForEachReference.IsInherited

ForEachReferenceFrom

ForEachReferenceThrough

ForEachReferencing

ForEachUserDefinedProperty

FormatProperty

Greater

GreaterOrEqual

HasOwnees

HasPropertyCharacteristic

IncludeFile

Increment

Integer

IsCreated

IsDefaultRITrigger

IsDeleted

IsGlobalFlagClear

IsGlobalFlagSet

IsLocalFlagSet

IsMatch

IsModified

IsNotInheritedFromUDD

IsOwnerPropertyEqual

IsOwnerPropertyFalse

IsOwnerPropertyNotEqual

IsOwnerPropertyTrue

IsPropertyEqual

IsPropertyEqualFrom

IsPropertyEqualThrough

IsPropertyFalse

IsPropertyFalseFrom

IsPropertyFalseThrough

IsPropertyModified

IsPropertyNotEqual

IsPropertyNotEqualFrom

IsPropertyNotEqualThrough

IsPropertyNotNull

IsPropertyNull

IsPropertyReordered

IsPropertyTrue

IsPropertyTrueFrom

IsPropertyTrueThrough

IterationCount

Left

Less

LessOrEqual

ListSeparator

Lookup

LookupProperty

Loop

LowerCase

Mid

Modulo

NotEqual

ObjectId

ObjectType

OnceForObject

OwnerProperty

OwnerQuotedName

Pad

Pop

Progress_ColumnDecimals

Progress_ColumnFormat

ProperCase

Property

PropertyFrom

PropertyThrough

PropertyValueCount

PropertyWithDefault

PushFKViewRelationship

PushNewImage

PushOldImage

PushOwner

PushReference

PushTopLevelObject

QuotedName

QuotedNameThrough

Remove

RemoveInteger

RemoveString

Repush

RepushType

Right

Separator

Set

SetGlobalFlag

SetInteger

SetLocalFlag

SetString

ShouldGenerate

String

Substitute

Switch

TableHasFilteredIndex

Trim

UpperCase

Value

Access_DatabaseName

Description

This macro evaluates to the database name for an Access target server.

Prototype

Access_DatabaseName

Result

This macro will fail in the following circumstances:

• The target database is not Access.

Deprecation Level

Active

Breaking Changes

None

Categories

• DBMS Specific Macros

Sample

Template

"Set ERwinDatabase = ERwinWorkspace.OpenDatabase("
Access_DatabaseName ")"

Result

Set ERwinDatabase = ERwinWorkspace.OpenDatabase("sERwinDatabase")

Access_Datatype

Description

This macro converts the erwin Data Modeler data type to a constant usable by an Access database.

Prototype

Access_Datatype

Result

This macro will fail in the following circumstances:

• The target database is not Access.

Deprecation Level

Active

Breaking Changes

None

Categories

• DBMS Specific Macros

Sample

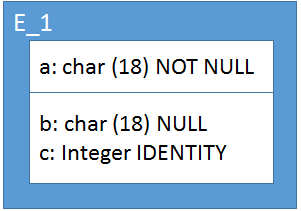

Assume the current context is the Attribute object E_1.a in the following illustration:

Template

"Set ERwinField = ERwinTableDef.CreateField("
"\"" Property("Physical_Name") "\" , " Access_Datatype ")"

Result

Set ERwinField = ERwinTableDef.CreateField("a", DB_INTEGER)

AllowAlterDatatype

Description

This macro determines if a change in an attribute's data type can be handled via an alter script.

Prototype

AllowAlterDatatype

Result

This macro will fail in the following circumstances:

• The database does not support alter for the data type change.

Deprecation Level

Active

Breaking Changes

None

Categories

Alter Macros

Sample

Assume the current context is an attribute whose datatype has been changed from smallint to integer.

Template

[ AllowAlterDatatype
"This can be altered"
]

Result

This can be altered

AreAllOwneesCreated

Description

This macro determines if all objects of the specified type that are owned by the current context object have been created in the current session.

Prototype

AreAllOwneesCreated( OwneeType [, Option1 [, OptionN [, …]]] )

Parameter	Status	Description
OwneeType	Req	The type of owned object to test.
Option1 � OptionN	Opt	One or more option keywords. They can appear in any order and are not case-sensitive.

The options available are found in the following table.

Option	Meaning
"reverse"	If this option is present, the macro will fail if all ownees of the specified type are created in the current session.

Result

This macro will fail in the following circumstances:

• The required parameters are not passed in.
• There exists an object of the specified type owned by the context object that was not created in the current session.
• All ownees of the specified type were created in the current session and the �reverse� option was present.
• No objects of the specified type are owned by the context object.

Deprecation Level

Active

Breaking Changes

None

Categories

• Alter Macros

Sample

Assume the current context is a key group that had all members deleted.

Template

[
/* This makes sure at least one was present before */
AreAllOwneesCreated("Key Group Member", "reverse")
/* This makes sure none are left */
AreAllOwneesDeleted("Key Group Member")
"Emit a DROP statement"

Result

Emit a DROP statement

AreAllOwneesDeleted

Description

This macro determines if all objects of the specified type that are owned by the current model have been deleted in the current session.

Prototype

AreAllOwneesDeleted( OwneeType [, Option1 [, OptionN [,…]]] )

Parameter	Status	Description
OwneeType	Req	The type of owned object to test.
Option1 � OptionN	Opt	One or more option keywords. They can appear in any order and are not case-sensitive.

The options available are found in the following table.

"reverse"

If this option is present, the macro will fail if all ownees of the specified type are created in the current session.

Result

This macro will fail in the following circumstances:

• The required parameters are not passed in.
• There exists an object of the specified type owned by the context object.
• At least one object of the specified type owned by the context object does not appear in the list of objects deleted in the current session.

Deprecation Level

Active

Breaking Changes

None

Categories

• Alter Macros

Sample

Assume the current context is a key group that had all members deleted.

Template

[
/* This makes sure at least one was present before */
AreAllOwneesCreated("Key Group Member", "reverse")
/* This makes sure none are left */
AreAllOwneesDeleted("Key Group Member")
"Emit a DROP statement"
]

Result

Emit a DROP statement

AreStringsEqual

Description

This determines if one string is equal to another.

Prototype

AreStringsEqual( LeftString, RightString [, Option] )

Parameter	Status	Description
LeftString	Req	The left string in the test.
RightString	Req	The right string in the test.
Option	Opt	By default the comparison is case-sensitive. If this parameter is set to "NoCase" the comparison will be done in a case-insensitive manner. The word "NoCase" is not case sensitive.

Result

This macro will fail in the following circumstances:

• The required parameters are not passed in.
• The two strings are not equal.

Deprecation Level

Deprecated

The Equal macro should be used.

Breaking Changes

None

Categories

• String Macros

Sample

Template

Set("Value1", "aaa")
Set("Value2", "bbb")
@if( AreStringsEqual( Value("Value1"), Value("Value2") ) )
{
"Yes"
}
%else
{
"No"
}

Result

No

Choose

Description

This macro, in conjunction with the Switch and Default macros, tests a predicate against a range of values and executes a block when a match is found.

The block associated with this macro will be evaluated if the predicate matches and no previous Choose or Default blocks have evaluated successfully.

Prototype

Choose( Value ) {}

Parameter	Status	Description
Value	Req	The predicate of the Switch macro will be tested against this value.

Result

This macro will fail in the following circumstances:

• The required parameters are not passed in.

Deprecation Level

Active

Breaking Changes

None

Categories

• Miscellaneous Macros

Sample

Assume the context is the primary key of an entity.

Template

Switch( Left( Property("Key_Group_Type"), "2" ) )
{
Choose( "PK" )
{
"This is a primary key."
}
Choose( "AK" )
{
"This is an alternate key."
}
Default
{
"This is an inversion entry."
}
Choose( "XX" )
{
/* This block will never execute, because a preceding block
will always evaluate successfully due to the presence of the
Default macro. */
}
}

Result

This is a primary key.

ClearAllGlobalFlags

Description

This clears all flags set with SetGlobalFlag.

Prototype

ClearAllGlobalFlags

Result

This macro always succeeds.

Deprecation Level

Active

Breaking Changes

None

Categories

• Stack Macros

Sample

Template

SetGlobalFlag("Flag1")
SetGlobalFlag("Flag2")
@if( IsGlobalFlagSet("Flag1") )
{
"Flag1 is set.\n"
}
@if( IsGlobalFlagSet("Flag2") )
{
"Flag2 is set.\n"
}
ClearAllGlobalFlags
@if( IsGlobalFlagSet("Flag1") )
{
"Flag1 is still set.\n"
}
@if( IsGlobalFlagSet("Flag2") )
{
"Flag2 is still set."
}

Result

Flag1 is set.
Flag2 is set.

ClearGlobalFlag

Description

This clears the named global flag set with SetGlobalFlag.

Prototype

ClearGlobalFlag( Flag )

Parameter	Status	Description
Flag	Req	The name of the flag to clear.

Result

This macro will fail in the following circumstances:

• The required parameters are not supplied.

Deprecation Level

Active

Breaking Changes

None

Categories

• Stack Macros

Sample

Template

SetGlobalFlag("Flag1")
SetGlobalFlag("Flag2")
@if( IsGlobalFlagSet("Flag1") )
{
"Flag1 is set.\n"
}
@if( IsGlobalFlagSet("Flag2") )
{
"Flag2 is set.\n"
}
ClearGlobalFlag("Flag1")
@if( IsGlobalFlagSet("Flag1") )
{
"Flag1 is still set.\n"
}
@if( IsGlobalFlagSet("Flag2") )
{
"Flag2 is still set."
}

Result

Flag1 is set.
Flag2 is set.
Flag2 is still set.

ClearLocalFlag

Description

This clears the named global flag set with SetLocalFlag.

Prototype

ClearLocalFlag( Flag [, Depth] )

Parameter	Status	Description
Flag	Req	The name of the flag to clear.
Depth	Opt	This will clear the named local flag from the stack entry Depth levels above the current entry.

Result

This macro will fail in the following circumstances:

• The required parameters are not supplied.

Deprecation Level

Active

Breaking Changes

None

Categories

• Stack Macros

Sample

Template

SetLocalFlag("Flag1")
PushOwner
SetLocalFlag("Flag2�)
ClearLocalFlag("Flag1", "1")
ClearLocalFlag("Flag2")
@ifnot( IsLocalFlagSet("Flag2") )
{
"Flag2 was cleared.\n"
}
Pop
@ifnot( IsLocalFlagSet("Flag1") )
{
"Flag1 was cleared.\n"
}

Result

Flag2 was cleared.
Flag1 was cleared.

ConversionFunction

Description

This macro prompts you for a conversion function for a column data type change. This occurs when the Alter Script processing determines that it will drop and recreate the table.

Prototype

ConversionFunction

Result

This macro will fail in the following circumstances:

• An appropriate conversion function cannot be determined.

Deprecation Level

Active

Breaking Changes

None

Categories

• Alter Macros

Sample

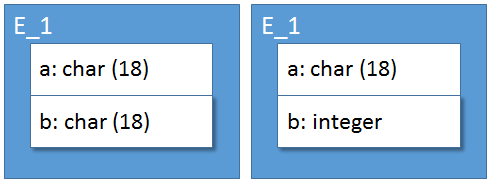

Assume that a table was modified from the left illustration to the right illustration.

If you ran the Alter Script process, pressed Preview and then Save Data, they would see a dialog something like the following.

DatabaseConnection

Description

This evaluates to one of the connection information strings

Prototype

DatabaseConnection( Option )

Parameter	Status	Description
Option	Req	A keyword indicating the desired string.

The options available are found in the following table. These terms are not case-sensitive.

Option	Meaning
"database"	The database name
"server"	The server name
"user"	The user name

Result

This macro will fail in the following circumstances:

• The required parameter is not supplied.

Deprecation Level

Active

Breaking Changes

None

Categories

None.

Sample

Template

DatabaseConnection( "user" )

Result

my_user_name

Date

Description

This evaluates to the current time stamp.

Prototype

Date( [Format] )

Parameter	Status	Description
Format	Opt	This may be either a format string as specified in the table below or the word "System". If the latter is supplied, the format string held by the operating system for the current locale is used. If no parameter is supplied, the default string used is: "%d %b %Y %I:%M:%S %p"

The format string consists of a series of specifiers that indicate a component of a full date/time value, plus the formatting for that value. For full documentation of all of the formatting options available, the documentation for the C Runtime function strftime() function should be consulted. This documentation can be located on the Web at a number of sites, one example of which is: http://msdn2.microsoft.com/en-US/library/fe06s4ak.aspx.

The following provides an overview of some of the more common specifiers.

%a

Abbreviated weekday name.

%A

Full weekday name.

%b

Abbreviated month name.

%B

Full month name.

%c

Date and time representation appropriate for locale.

%#c

Long date and time representation, appropriate for current locale. For example: "Tuesday, March 14, 1995, 12:41:29".

%d

Day of month as a decimal number (01 � 31). If a # sign is inserted after the % sign, leading zeros are suppressed.

%H

Hour in 24-hour format (00 � 23). If a # sign is inserted after the % sign, leading zeros are suppressed.

%I

Hour in 12-hour format (01 � 12). If a # sign is inserted after the % sign, leading zeros are suppressed.

%j

Day of year as a decimal number (001 � 366). If a # sign is inserted after the % sign, leading zeros are suppressed.

%m

Month as a decimal number (01 � 12). If a # sign is inserted after the % sign, leading zeros are suppressed.

%M

Minute as a decimal number (00 � 59). If a # sign is inserted after the % sign, leading zeros are suppressed.

%p

Current locale's AM/PM indicator for a 12-hour clock.

%S

Second as decimal number (00 � 59). If a # sign is inserted after the % sign, leading zeros are suppressed.

%U

Week of year as decimal number, with Sunday as first day of week (00 � 53). If a # sign is inserted after the % sign, leading zeros are suppressed.

%w

Weekday as decimal number (0 � 6; Sunday is 0). If a # sign is inserted after the % sign, leading zeros are suppressed.

%W

Week of year as decimal number, with Monday as first day of week (00 � 53). If a # sign is inserted after the % sign, leading zeros are suppressed.

%x

Date representation for current locale.

%#x

Long date representation, appropriate to current locale. For example: "Tuesday, March 14, 1995".

%X

Time representation for current locale.

%y

Year without century as a decimal number (00 � 99). If a # sign is inserted after the % sign, leading zeros are suppressed.

%Y

Year with century as a decimal number. If a # sign is inserted after the % sign, leading zeros are suppressed.

%z, %Z

Either the time-zone name or time zone abbreviation, depending on registry settings. No characters if time zone is unknown.

Result

This macro always succeeds.

Deprecation Level

Active

Breaking Changes

None

Categories

• Miscellaneous Macros

Sample

Template

Date "\n"
Date("system") "\n"
Date("%b %d, %Y")

Result

03 Oct 2006 02:01:24 PM
Tuesday, October 03, 2006
Oct 03, 2006

DBMSVersion

Description

This macro determines if the version of the database specified for the current model falls into a specific range. Version numbers should be specified in the format:

<Major Version Number>.<Minor Version Number>

If no minor version is specified, then it is assumed to be zero.

Prototype

DBMSVersion( StartVersion [, StopVersion] )

Parameter	Status	Description
Start Version	Req	This identifies the lowest acceptable version number.
Stop Version	Opt	This identifies the highest acceptable version number. If this value is not supplied, only the lower version is tested.

Result

This macro will fail in the following circumstances:

• The required parameters are not passed in.
• The model has not target database set.
• The specified parameters cannot be parsed.
• The version of the database on the model is outside the specified range.

Deprecation Level

Active

Breaking Changes

None

Categories

• Miscellaneous Macros

Sample

Assume the context is a deleted entity in Version 9:

Template

"DROP TABLE " Property("Physical_Name") " CASCADE CONSTRAINTS"
[DBMSVersion("10") " PURGE"]

Result

DROP TABLE customer CASCADE RESTRAINTS

Assume the context is a deleted entity in Version 10:

Template

"DROP TABLE " Property("Physical_Name") " CASCADE CONSTRAINTS"
[DBMSVersion("10") " PURGE"]

Result

DROP TABLE customer CASCADE RESTRAINTS PURGE

Decrement

Description

This macro decrements the value in the specified variable. The variable is assumed to contain an integer value. If it does not, the value is coerced to zero and the decrement occurs. If the variable does not exist, it is created first, with a value of zero.

Prototype

Decrement( VariableName )

Parameter	Status	Description
VariableName	Req	The name of the variable.

Result

This macro will fail in the following circumstances:

• The required parameters are not passed in.

Deprecation Level

Active

Breaking Changes

None

Categories

• String Macros

Sample

Template

Set("Var1", "2")
Decrement("Var1") Value("Var1") "\n"
Decrement("Var1") Value("Var1") "\n"
/* Demonstrate data type coercion */
Set("Var2", "foo")
Decrement("Var2") Value("Var2") "\n"
/* Demonstrate auto-creation */
Decrement("Var3") Value("Var3")

Result

1
0
-1
-1

Default

Description

This macro, in conjunction with the Switch and Choose macros, tests a predicate against a range of values and executes a block when a match is found.

The block associated with this macro will be evaluated if no previous Choose blocks have evaluated successfully.

Prototype

Default {}

Result

This macro always succeeds.

Deprecation Level

Active

Breaking Changes

None

Categories

• Miscellaneous Macros

Sample

Assume the context is an inversion entry of an entity.

Template

Switch( Left( Property("Key_Group_Type"), "2" ) )
{
Choose( "PK" )
{
"This is a primary key."
}
Choose( "AK" )
{
"This is an alternate key."
}
Default
{
"This is an inversion entry."
}
Choose( "XX" )
{
/* This block will never execute, because a preceding block
will always evaluate successfully */
}
}

Result

This is an inversion entry.

EnumProperty

Description

This is a lookup macro that evaluates to a specified string based upon a zero-based integer value contained in a property of the current context object. The integer values are assumed to be in a contiguous range starting at zero and positive in value.

Prototype

EnumProperty( Property, Value0 [, Value1 [, …]] )

Parameter	Status	Description
Property	Req	The property to examine.
Value0	Req	The value to return if the property has the value of '0'.
Value1 � ValueN	Opt	The value(s) to return if the property has the value of '1' to 'N'.

Result

This macro will fail in the following circumstances:

• The required parameters are not passed in.
• The specified property does not exist or it has a null value.
• The list of replacement strings is not large enough to accommodate the value found in the property.

Deprecation Level

Active

Breaking Changes

None

Categories

• Property Macros

Sample

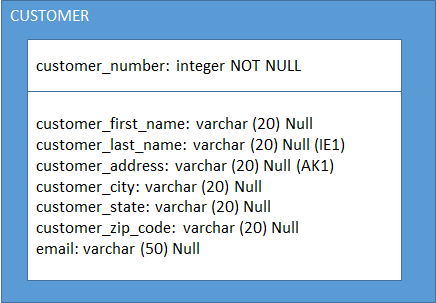

Assume the context is the table in the following illustration and the target type is Access.

Template

ForEachOwnee("Attribute")
{
EnumProperty( "Null_Option_Type", "NULL", "NOT NULL" ) "\n"
}

Result

NOT NULL
NULL

EnumProperty2

Description

This is a lookup macro that evaluates to a specified string based upon a zero-based integer value contained in a property of the current context object. The values in the property are offset from zero by the amount specified in Offset. For example, if the value of Offset is '10', then the first string will correspond to a property value of '10', the second to the value '11' and so on. The integer values are assumed to be in a contiguous range and result in positive values once the offset is applied.

Prototype

EnumProperty2( Property, Offset, Value0 [, Value1 [, …]] )

Parameter	Status	Description
Property	Req	The property to examine.
Offset	Req	The amount to offset the value in the property.
Value0	Req	The value to return if the property has the adjusted value of '0'.
Value1 � ValueN	Opt	The value(s) to return if the property has the adjusted value of '1' to 'N'.

Result

This macro will fail in the following circumstances:

• The required parameters are not passed in.
• The specified property does not exist or it has a null value.
• The list of replacement strings is not large enough to accommodate the value found in the property.

Deprecation Level

Active

Breaking Changes

None

Categories

• Property Macros

Sample

Assume the context is a logical/physical model.

Template

EnumProperty2( "Type", "1", "Logical", "Physical",
"Logical/Physical")

Result

Logical/Physical

Equal

Description

This determines if one string is equal to another.

Prototype

Equal( LeftString, RightString [, Option] )

Parameter	Status	Description
LeftString	Req	The left string in the test.
RightString	Req	The right string in the test.
Option	Opt	Option keyword

The options available are found in the following.

"no_case"

By default the comparison is case-sensitive. If this option is set the comparison will be done in a case-insensitive manner.

Result

This macro will fail in the following circumstances:

• The required parameters are not passed in.
• The two strings are not equal.

Deprecation Level

Active

Breaking Changes

None

Categories

• String Macros

Sample

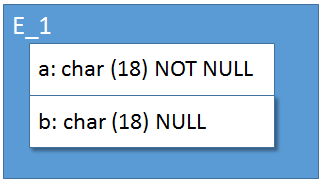

Assume the context is the following table:

Template

@if( Equal(Property("Name"), "e_1") )
{
"Name is exactly 'e_1'.\n"
}
@else
{
"Name is not exactly 'e_1'.\n"
}
@if( Equal(Property("Name"), "e_1", "no_case") )
{
"Name is case-insensitively like 'e_1'."
}

Result

Name is not exactly 'e_1'.
Name is case-insensitively like 'e_1'.

Execute

Description

This macro allows a piece of named template code to be reused. It will load a named template from a template file and expand it in the current context.

This macro will work only in processes that make use of named templates and template files. Currently, these are Schema Generation (Forward Engineering) and Alter Script Generation. More information on template files can be found in the document Editing Forward Engineering Templates.pdf.

If the FileName parameter is not supplied, the macro looks for the template in the current template file. The current template file is the initial file bound to the TLX engine by the erwin Data Modeler process being run.

If the FileName parameter is supplied, the macro looks for the template in the specified file.

Prototype

Execute( NamedTemplate [, FileName [, Param1 [, Param2 [, …]]]] )

Parameter	Status	Description
NamedTemplate	Req	This is the name of the template entry in the file.
FileName	Opt	This is the name of the template file containing the entry, if it is not the current file. An empty string also indicates the current file. If the specified file does not contain a path specification, the file is assumed to be in the same location as the current template file.
Param1 � ParamN	Opt	Parameters to the executed template. The template being invoked can contain replacement tokens�Param1 will be substituted for �%1�, Param2 will be substituted for �%2�, and so on.

Result

This macro will fail in the following circumstances:

• The required parameters are not passed in.
• The template cannot be located.
• The template cannot be evaluated.

Deprecation Level

Active

Breaking Changes

None

Categories

• Include Macros

Sample

The following illustrates a hypothetical template file for constructing very basic CREATE TABLE statements. Assume that the table in the following illustration is the current context the process is using:

Template

SPItemBegin = Create Entity
"CREATE TABLE " Property("Name") "\n"
"(\n"
ForEachOwnee("Attribute")
{
ListSeparator(",\n")
"\t" Execute("Clause: Column Properties")
}
")"
SPItemEnd
SPItemBegin = Clause: Column Properties
Property("Physical_Name") " " Property("Physical_Data_Type")
SPItemEnd

Result

CREATE TABLE E_1
(
a INTEGER,
b CHAR(18)
)

ExecuteTest

Description

This macro allows a piece of named template code to be reused. It will load a named template from a template file and expand it in the current context. If the result expands to the text �Success�, the macro will succeed. Otherwise, it will fail.

This macro will work only in processes that make use of named templates and template files. Currently, these are Schema Generation (Forward Engineering) and Alter Script Generation. More information on template files can be found in the document Editing Forward Engineering Templates.pdf.

If the FileName parameter is not supplied, the macro looks for the template in the current template file. The current template file is the initial file bound to the TLX engine by the erwin Data Modeler process being run.

If the FileName parameter is supplied, the macro looks for the template in the specified file.

Prototype

ExecuteTest( NamedTemplate [, FileName [, Param1 [, Param2 [, …]]]] )

Parameter	Status	Description
NamedTemplate	Req	This is the name of the template entry in the file.
FileName	Opt	This is the name of the template file containing the entry, if it is not the current file. An empty string also indicates the current file. If the specified file does not contain a path specification, the file is assumed to be in the same location as the current template file.
Param1 � ParamN	Opt	Parameters to the executed template. The template being invoked can contain replacement tokens�Param1 will be substituted for �%1�, Param2 will be substituted for �%2�, and so on.

Result

This macro will fail in the following circumstances:

• The required parameters are not passed in.
• The template cannot be located.
• The template cannot be evaluated.
• The template does not expand to the value �Success�.

Deprecation Level

Active

Breaking Changes

None

Categories

• Include Macros

Sample

The following illustrates a hypothetical template file for constructing very basic CREATE TABLE statements. Assume that the table in the following illustration is the current context the process is using.

Template

SPItemBegin = Create Entity
"CREATE TABLE " Property("Name") "\n"
"(\n"
ForEachOwnee("Attribute")
{
ListSeparator(",\n")
"\t" ExecuteTest("Ignore Logical Only")
}
")"
SPItemEnd
SPItemBegin = Ignore Logical Only
@ifnot( Property("Is_Logical_Only") ){ "Success" }
SPItemEnd

Result

CREATE TABLE E_1
(
a INTEGER,
b CHAR(18)
)

Fail

Description

This is a debugging macro that always fails. It can be used to debug conditional blocks.

Prototype

Fail

Result

This macro always fails.

Deprecation Level

Active

Breaking Changes

None

Categories

Sample

Template

[Fail "This should never emit"]

Result

ForEachFKColumn

Description

This iterates across the instances of a specific type of object.

Prototype

ForEachFKColumn{}

Result

This macro succeeds.

Deprecation Level

Active

Breaking Changes

None

Categories

• Iterator Macros

Sample

Assume the following model and the foreign key in E_2 is the context object:

Template

ForEachFKColumn
{
PushOwner Property("Name") Pop "." Property("Name") "\n"
}

Result

E_2.a
E_2.b
E_2.c

ForEachMigratingColumn

Description

This iterates across the instances of a specific type of object.

Prototype

ForEachMigratingColumn{}

Result

This macro succeeds.

Deprecation Level

Active

Breaking Changes

None

Categories

• Iterator Macros

Sample

Assume the following model and the foreign key in E_2 is the context object:

Template

ForEachMigratingColumn
{
PushOwner Property("Name") Pop "." Property("Name") "\n"
}

Result

E_1.a
E_1.b
E_1.c

ForEachOfType

Description

This iterates across the instances of a specific type of object.

Prototype

ForEachOfType( TypeName [, Category] ){}

Parameter	Status	Description
TypeName	Req	The type of object to traverse.
Category	Opt	A filter on what type of objects should be returned. If this value is not specified, "active" is assumed.

The Category values available are found in the following.

"active"

Only actual, non-phantom objects of the specified type are returned.

"deleted"

Only phantom objects representing deleted objects of the specified type are returned.

"modified"

Only phantom objects representing the pre-image of modified objects of the specified type are returned.

"phantom"

Only phantom objects, both deleted and modified, of the specified type are returned.

"all"

All phantom and non-phantom objects of the specified type are returned.

Result

This macro succeeds.

Deprecation Level

Active

Breaking Changes

None

Categories

Iterator Macros

Sample

Assume a model that, when loaded, had three Entity objects: E_1, E_2 and E_3. Assume E_2 was deleted, E_3 was renamed to New_3, and E_4 was created.

Template

"Active entities: "
ForEachOfType("Entity")
{
ListSeparator(", ")
Property("Name")
}
"\nDeleted entities: "
ForEachOfType("Entity", "deleted")
{
ListSeparator(", ")
Property("Name")
}
"\nModified entities: "
ForEachOfType("Entity", "modified")
{
ListSeparator(", ")
Property("Name")
}

Result

Active entities: E_1, New_3, E_4
Deleted entities: E_2
Modified entities: E_3

ForEachOwnee

Description

This iterates across the ownee list of the current context object.

When the current context object is a phantom object representing the old state of a modified object, the ownees reported will be those present in the old state, not the current set of ownees.

Prototype

ForEachOwnee( [TypeName [, SortBy [, Option1 [, Option2 [,…]]]]] ){}

Parameter	Status	Description
TypeName	Opt	If a type name is provided, the iteration will be filtered to pass only objects of that type. If this is not provided, all owned objects will be returned.
SortProperty	Opt	The property to use as the basis of sorting. If this is not provided or is an empty string, no sorting will take place and the objects will appear in whatever internal order is held in erwin Data Modeler.
Option1 � OptionN	Opt	One or more option keywords. They can appear in any order and are not case-sensitive.

The options available are found in the following.

"owner_sort"

If this option is present, SortProperty is assumed to be found on the owning (context) object and to be in the form of a vector of ownee ids. If the owning object does not have the specified property, no sorting will take place. If this is not present, the property is assumed to be found on the ownee objects and they will be sorted based upon its value.

"reverse_sort"

If this option is present, the sorting will be reversed.

"require_one"

If this option is present, at least one iteration must occur or the macro will fail.

Result

This macro always succeeds.

Deprecation Level

Active

Breaking Changes

None

Categories

• Iterator Macros

Sample

Assume the context is the table in the following illustration, which is shown in the Physical Order display level:

Template

ForEachOwnee("Attribute", "Physical_Columns_Order_Ref", "owner_sort")
{
Property("Physical_Name") "\n"
}
"\n"
ForEachOwnee("Attribute", "Name")
{
Property("Physical_Name") "\n")
}

Result

b
a
a
b

ForEachOwneeFrom

Description

This iterates across the ownee list on the first object in the context stack with the specified type.

Prototype

ForEachOwneeFrom( ContextType [, TypeName [, SortBy [, Option1
[, Option2 [,…]]]]] ){}

Parameter	Status	Description
ContextType	Req	The type of object to locate on the context stack.
TypeName	Opt	If a type name is provided, the iteration will be filtered to pass only objects of that type. If this is not provided, all owned objects will be returned.
SortProperty	Opt	The property to use as the basis of sorting. If this is not provided or is an empty string, no sorting will take place and the objects will appear in whatever internal order is held in erwin Data Modeler.
Option1 � OptionN	Opt	One or more option keywords. They can appear in any order and are not case-sensitive.

Result

This macro will fail in the following circumstances:

• The current object is a phantom object.
• An object of that type does not exist on the context stack.

Deprecation Level

Active

Breaking Changes

None

Categories

• Iterator Macros

Sample

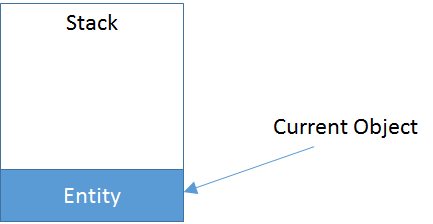

To illustrate the difference between this and the ForEachOwnee macro, assume that context object is E_1 in the following illustration

When the following template code is expanded, both loops produce the same result because an Entity object is current on the stack.

Template

ForEachOwnee("Attribute")
{
Property("Physical_Name") "\n"
}
"\n"
ForEachOwneeFrom("Entity", "Attribute")
{
Property("Physical_Name") "\n"
}

Result

a
b
a
b

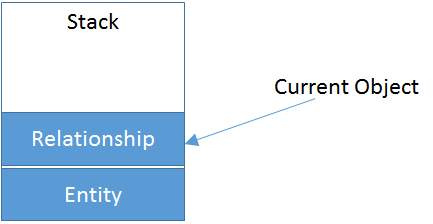

However, if we introduce other objects onto the context stack, the behavior of the two iterators changes. For example, if we introduce Relationship onto the stack above the Entity, using the ForEachReference macro, the stack will appear as follows:

Since Relationship objects don�t own Attribute objects, the first iterator will not traverse any objects. The second iterator will still locate the Entity object and traverse its ownees.

Template

ForEachReference("Parent_Relationships_Ref")
{
ForEachOwnee("Attribute")
{
Property("Physical_Name") "\n"
}
"\n"
ForEachOwneeFrom("Entity", "Attribute")
{
Property("Physical_Name") "\n"
}
}

Result

a
b

ForEachOwneeThrough

Description

This iterates across the ownee list on the object pointed to by the specified scalar reference property on the current context object.

Prototype

ForEachOwneeThrough( ReferenceProperty [, TypeName [, SortBy
[, Option1 [, Option2 [,…]]]]] ){}

Parameter	Status	Description
ReferenceProperty	Req	The reference property to use to locate the desired owning object.
TypeName	Opt	If a type name is provided, the iteration will be filtered to pass only objects of that type. If this is not provided, all owned objects will be returned.
SortProperty	Opt	The property to use as the basis of sorting. If this is not provided or is an empty string, no sorting will take place.
Option1 � OptionN	Opt	One or more option keywords. They can appear in any order and are not case-sensitive.

The options available are found in the following.

"owner_sort"

If this option is present, SortProperty is assumed to be found on the owning (context) object and to be in the form of a vector of ownee ids. If the owning object does not have the specified property, no sorting will take place. If this is not present, the property is assumed to be found on the ownee objects and they will be sorted based upon its value.

"reverse_sort"

If this option is present, the sorting will be reversed.

"require_one"

If this option is present, at least one iteration must occur or the macro will fail.

Result

This macro will fail in the following circumstances:

• The current object is a phantom object.
• The reference property does not exist.

Deprecation Level

Active

Breaking Changes

None

Categories

• Iterator Macros

Sample

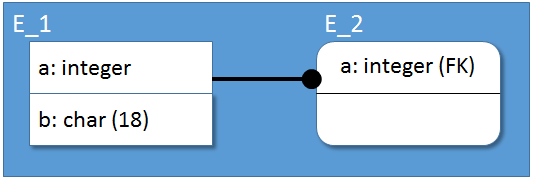

Assume the current context object is the Relationship in the following illustration

Template

ForEachOwneeThrough("Parent_Entity_Ref", "Attribute")
{
Property("Physical_Name") "\n"
}

Result

a
b

ForEachProperty

Description

This is a special-purpose macro generally used in components that produce dumps of models. It will iterate across the properties of an object. Special sub-macros are then available to retrieve information about the property.

The context object is not changed by this iterator.

Prototype

ForEachProperty( [Option1 [, Option2 [, …]]] ){}

Parameter	Status	Description
Option1 � OptionN	Opt	One or more option keywords. These can appear in any order.

The options available are found in the following table. These terms are not case-sensitive.

"type_sort"

The properties will be sorted by their type.

"all"

Pass all types of properties. This is the default setting and will override conflicting options.

"user_defined"

Pass only user-defined properties.

"built_in"

Pass only built-in properties.

Result

This macro will fail in the following circumstances:

• The context object is a phantom object.

Deprecation Level

Active

Breaking Changes

None

Categories

• Iterator Macros

Sample

Assume that the current context is the M1 object Domain (the object defining the metadata for Domain instances in the model) and we want to see what tags are applied to it.

Template

/* List the tags, putting inherited ones in HTML italics */
ForEachProperty("user_defined", "types_sort")
{
[ForEachProperty.IsInherited "<i>"]
ForEachProperty.Type
[ForEachProperty.IsInherited "</i>"] "="
ForEachProperty.Value "\n"
}

Result

<i>HasUdpEditor</i>=true
<i>IsExplorerSuppressed</i>=true
IsLogical=true
Is_Physical=true
Legacy_MM_Order=7
Physical_Name=Domain

ForEachProperty.IsInherited

Description

This is a special-purpose macro is that is usable only inside of a ForEachProperty iterator, and then only when the context object is an M1 (metadata) object.

It will indicate if the property was defined on the context object or inherited from a parent M1 object.

Prototype

ForEachProperty.IsInherited

Result

This macro will fail in the following circumstances:

• It is not executed inside the proper containing iterator.
• The property is not inherited.

Deprecation Level

Active

Breaking Changes

None

Categories

• Iterator Macros

Sample

See the example under the ForEachProperty macro.

ForEachProperty.Type

Description

This is a special-purpose macro is that is usable only inside of a ForEachProperty iterator, and then only when the context object is an M1 (metadata) object.

It will evaluate to the type name of the property.

Prototype

ForEachProperty.Type

Result

This macro will fail in the following circumstances:

• It is not executed inside the proper containing iterator.

Deprecation Level

Active

Breaking Changes

None

Categories

• Iterator Macros

Sample

See the example under the ForEachProperty macro.

ForEachProperty.Value

Description

This is a special-purpose macro is that is usable only inside of a ForEachProperty iterator, and then only when the context object is an M1 (metadata) object.

It will evaluate to the value of the property.

This macro will fail if:

• It is not executed inside the proper containing iterator.

Prototype

ForEachProperty.Value( [NullString] )

Parameter	Status	Description
NullString	Opt	The string to emit if the property's value is a NULL. If this is not specified, an empty string will be emitted.

Result

This macro will fail in the following circumstances:

Deprecation Level

Active

Breaking Changes

None

Categories

• Iterator Macros

Sample

See the example under the ForEachProperty macro.

ForEachPropertyValue

Description

This iterates across the values present in the specified property on the current context object.

The context object is not changed by this iterator.

Prototype

ForEachProperty( Property [, Option1 [, …]]] ){}

Parameter	Status	Description
Property	Req	The type name of the property.
Option1 � OptionN	Opt	One or more option keywords. These can appear in any order.

The options available are found in the following table. These terms are not case-sensitive.

"new_only"

On a modified object, only traverse the new values.

"old_only"

On a modified object, only traverse the old values.

Result

This macro will fail in the following circumstances:

• The required parameters are not supplied.
• The context object is a phantom object.

Deprecation Level

Active

Breaking Changes

None

Categories

• Iterator Macros

Sample

The following example traverses the old and new values of a Partition object, merging the old values and splitting out the new values.

Template

IsPropertyModified( "Partition_Values" )
[
ForEachPropertyValue( "Partition_Values", "old_only" )
{
"ALTER PARTITION FUNCTION " Property( "Name" ) "() "
"\nMERGE RANGE (" ForEachPropertyValue.Value ")"
FE::EndOfStatement
}
]
[
ForEachPropertyValue( "Partition_Values", "new_only" )
{
"ALTER PARTITION FUNCTION " Property( "Name" ) "() "
"\nSPLIT RANGE (" ForEachPropertyValue.Value ")"
FE::EndOfStatement
}
]

ForEachPropertyValue.Value

Description

This is a special-purpose macro is that is usable only inside of a ForEachProperty iterator, and then only when the context object is an M1 (metadata) object.

It will evaluate to the value of the property.

This macro will fail if:

• It is not executed inside the proper containing iterator.

Prototype

ForEachPropertyValue.Value

Result

This macro always succeeds.

Deprecation Level

Active

Breaking Changes

None

Categories

• Iterator Macros

Sample

See the example under the ForEachPropertyValue macro.

ForEachReference

Description

This iterates across the objects listed in the specified property on the current context object.

Prototype

ForEachReference( Property, [Option1 [, Option2 [, …]]] ){}

Parameter	Status	Description
Property	Req	The type name of the property.
Option1 � OptionN	Opt	One or more option keywords. These can appear in any order.

The options available are found in the following table.

"name_sort"

The objects will be sorted according to the 'Name' property in ascending order.

"flatten"

When the context objects exist in the M1 (metadata) layer of the model this option will cause the values on parent objects to be pushed down to the child objects. Do not use this when the macro is employed in the context of an M0 (data) model as unpredictable results will occur.

"exact"

This will cause the vector of references to be traversed exactly as they are found. Normally, duplicates are suppressed; this changes that behavior. This option will cause the "name_sort" and "flatten" options to be ignored, if they are specified.

Result

This macro will fail in the following circumstances:

• The specified parameters are not provided.
• The specified property is not found on the context object.

Deprecation Level

Active

Breaking Changes

None

Categories

Iterator Macros

Sample

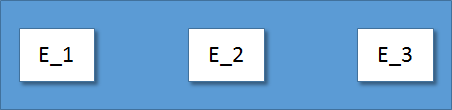

Assume the current context is a Subject Area object containing the tables shown in the following illustration:

Template

ForEachReference("Referenced_Entities_Ref")
{
Property("Name") "\n"
}

Result

E_1
E_2
E_3

ForEachReference.IsInherited

Description

This is a special-purpose macro is that is usable only inside of a ForEachReference iterator, and then only when the context object is an M1 (metadata) object.

It will indicate if the value in the reference property vector was defined on the context object or inherited from a parent M1 object.

Prototype

ForEachReference.IsInherited

Result

This macro will fail in the following circumstances:

• It is not executed inside the proper containing iterator.
• The value in the reference vector is not inherited.

Deprecation Level

Active

Breaking Changes

None

Categories

• Iterator Macros

Sample

Assume that the current context is the M1 object Domain (the object defining the metadata for Domain instances in the model) and we want to see object types can own it.

Template

ForEachReference("Valid_Owners_Ref", "name_sort")
{
Property("Name") "\n"
}

Result

Model__owns__Domain

ForEachReferenceFrom

Description

This iterates across the objects listed in the specified property on the first object of the specified type found on the context stack.

Prototype

ForEachReferenceFrom( ContextType, Property, [Option1 [, Option2
[, …]]] ){}

Parameter	Status	Description
ContextType	Req	The type of object to locate on the context stack.
Property	Req	The type name of the property.
Option1 � OptionN	Opt	One or more option keywords. These can appear in any order.

The options available are found in the following table.

"name_sort"

The objects will be sorted according to the 'Name' property in ascending order.

"flatten"

When the context objects exist in the M1 (metadata) layer of the model this option will cause the values on parent objects to be pushed down to the child objects. Do not use this when the macro is employed in the context of an M0 (data) model as unpredictable results will occur.

Result

This macro will fail in the following circumstances:

• The specified parameters are not provided.
• There is no context object of the specified type.
• The specified property is not found on the context object.

Deprecation Level

Active

Breaking Changes

None

Categories

• Iterator Macros

Sample

Assume that the current context is E_2 in the following illustration, and that E_2 owns a trigger:

Template

ForEachOwnee("Trigger")
{
ForEachReferenceFrom("Entity", "Parent_Relationships_Ref")
{
ListSeparator("\n")
Property("Physical_Name")
}
}

Result

R_2
R_3

ForEachReferenceThrough

Description

This iterates across the objects listed in the specified property on the object pointed to by the specified scalar reference property on the current context object

Prototype

ForEachReferenceFrom( ReferenceProperty, Property, [Option1
[, Option2 [, …]]] ){}

Parameter	Status	Description
ReferenceProperty	Req	The reference property to use to locate the desired owning object.
Property	Req	The type name of the property.
Option1 � OptionN	Opt	One or more option keywords. These can appear in any order.

The options available are found in the following table.

"name_sort"

The objects will be sorted according to the 'Name' property in ascending order.

"flatten"

When the context objects exist in the M1 (metadata) layer of the model this option will cause the values on parent objects to be pushed down to the child objects. Do not use this when the macro is employed in the context of an M0 (data) model as unpredictable results will occur.

Result

This macro will fail in the following circumstances:

• The specified parameters are not provided.
• There is no context object of the specified type.
• The specified property is not found on the context object.

Deprecation Level

Active

Breaking Changes

None

Categories

• Iterator Macros

Sample

Assume that the current context is R_2 in the following illustration:

Template

ForEachReferenceThrough("Parent_Entity_Ref",
"Parent_Relationships_Ref")
{
ListSeparator("\n")
Property("Physical_Name")
}
}

Result

R_2
R_3

ForEachReferencing

Description

This iterates across the referencing set of the current context object. The referencing set is all objects that hold a reference property to that object.

Prototype

ForEachReference{}

Result

This macro will fail in the following circumstances:

• The context object is a phantom object.

Deprecation Level

Active

Breaking Changes

None

Categories

• Iterator Macros

Sample

Assume the current context is the Relationship object shown in the following illustration:

Template

ForEachReferencing
{
ObjectType " - " Property("Name") "\n"
}

Result

Entity - E_1
Entity - E_2
Drawing Object Relationship - R/1
Key Group - XIF1E/2
Attribute - a

ForEachUserDefinedProperty

Description

This will iterate across the user-defined properties of an object. Special sub-macros are then available to retrieve information about the property.

The context object is not changed by this iterator.

Prototype

ForEachUserProperty( [Option1 [, Option2 [, …]]] ){}

Parameter	Status	Description
Option1 � OptionN	Opt	One or more option keywords. These can appear in any order.

The options available are found in the following table. These terms are not case-sensitive.

"all"

Pass all user-defined properties. This is the same as passing no parameter.

"database"

Pass user-defined properties having the Is_Database_Property tag set.

"logical"

Pass user-defined properties having the Is_Logical tag set.

"physical"

Pass user-defined properties having the Is_Physical tag set.

Result

This macro will fail in the following circumstances:

The context object is a phantom object.

Deprecation Level

Active

Breaking Changes

None

Categories

• Iterator Macros

Sample

Assume that the current context is the Model with a UDP named "Foo" set on the logical side and a UDP named "Bar" set on the physical side.

Template

"All UDPs\n"
ForEachUserDefinedProperty
{
"\t" ForEachUserDefinedProperty.Type "\n"
}
"\nLogical UDPs\n"
ForEachUserDefinedProperty( "logical" )
{
"\t" ForEachUserDefinedProperty.Type "\n"
}

Result

All UDPs
Model.Logical.foo
Model.Physical.bar
Logical UDPs
Model.Logical.foo

FormatProperty

Description

This macro evaluates to a formatted representation of the specified property on the current context object. A property is identified by its class name as defined in the metadata for erwin Data Modeler.

Prototype

Property( PropertyName [, Option1 [, Option2 [, …]]] )

Parameter	Status	Description
PropertyName	Req	The type name of the property.
Option1 � OptionN	Opt	One or more option keywords. They can appear in any order and are not case-sensitive.

The options available are found in the following table.

-d:<value>

This specifies the delimiter that will be inserted between individual values in a vector property. If this option is not supplied, or <value> is empty, a comma will be used.

-b:<value>

This specifies the bracketing characters for each value in the property. If <value> is one character, it will be applied as an opening and closing bracket. If <value> is two characters, the first character will be applied as an opening bracket and the second character as a closing bracket.

-p:<value>

If the property is a reference property, this option will cause the property specified by <value> to be read on the referenced object. If this value is not supplied, or the property cannot be evaluated, the raw reference value will be used.

"no_load"

By default, properties with the data type of 'Resource' will load and the macro will evaluate to the loaded value. If this value is provided, properties with this data type will evaluate to the resource identifier string instead of the resource value.

"fail_if_empty"

If a parameter with the value of "fail_if_empty" is supplied, the macro will fail if the result is an empty string.

Result

This macro will fail in the following circumstances:

• The required parameters are not supplied.
• The "fail_if_empty" option is supplied and the result is an empty string.

Deprecation Level

Active

Breaking Changes

None.

Categories

• Property Macros

Sample

Assume the current context object is a subject area containing the tables in the following illustration:

Template

FormatProperty("Referenced_Entities_Ref", "d:,", "b:\"", "p:Name")
/* Which would be the same as… */ "\n\n"
ForEachReference("Referenced_Entities_Ref")
{
ListSeparator(",")
"\"" Property("Name") "\""
}

Result

"E_1","E_2"
"E_1","E_2"

Greater

Description

This determines if one value is greater than another.

If the values are being compared as numbers, it assumes that the parameters passed are numeric values. In these cases, the macro stops reading a parameter when it encounters a character it cannot convert. If no characters are converted, the value is assumed to be zero. For example (assuming "ascii" is not specified):

"123"

123

"123Foo"

123

"Foo"

0

Prototype

Greater( LeftString, RightString [, Option1 [, Option2 [, …]]] )

Parameter	Status	Description
LeftString	Req	The left value in the test.
RightString	Req	The right value in the test.
Option1 � OptionN	Opt	One or more option keywords. They can appear in any order and are not case-sensitive.

The options available are found in the following table.

"ascii"

By default, the strings are compared as numeric values. For example, "11" would compare as greater than "9".

If this parameter is set to "ascii " the strings are interpreted as case-sensitive literals (ASCII sort). This would cause "11" to compare as less than "9".

"no_case"

If this is set to "no_case" and the values are being compared in an ASCII sort, the strings are compared as strings in a case-insensitive manner. The default behavior is a case-sensitive comparison

Result

This macro will fail in the following circumstances:

• The required parameters are not passed in.
• The first string is not greater than the second.

Deprecation Level

Active

Breaking Changes

None

Categories

• String Macros

Sample

Template

Set("Value1", "11")
Set("Value2", "9")
@if( Greater( Value("Value1"), Value("Value2") )
{
"Greater on a numeric sort\n"
}
@else
{
"Not greater on a numeric sort\n"
}
@if( Greater( Value("Value1"), Value("Value2"), "ascii" )
{
"Greater on an ASCII sort\n"
}
@else
{
"Not greater on an ASCII sort\n"
}

Result

Greater on a numeric sort
Not greater on an ASCII sort

GreaterOrEqual

Description

This determines if one value is greater than or equal to another.

If the values are being compared as numbers, it assumes that the parameters passed are numeric values. In these cases, the macro stops reading a parameter when it encounters a character it cannot convert. If no characters are converted, the value is assumed to be zero. For example (assuming "ascii" is not specified):

"123"

123

"123Foo"

123

"Foo"

0

Prototype

GreaterOrEqual( LeftString, RightString
[, Option1 [, Option2 [, …]]] )

Parameter	Status	Description
LeftString	Req	The left value in the test.
RightString	Req	The right value in the test.
Option1 � OptionN	Opt	One or more option keywords. They can appear in any order and are not case-sensitive.

The options available are found in the following table.

ascii"

By default, the strings are compared as numeric values. For example, "11" would compare as greater than "9".

If this parameter is set to "ascii " the strings are interpreted as case-sensitive literals (ASCII sort). This would cause "11" to compare as less than "9".

"no_case"

If this is set to "no_case" and the values are being compared in an ASCII sort, the strings are compared as strings in a case-insensitive manner. The default behavior is a case-sensitive comparison

Result

This macro will fail in the following circumstances:

• The required parameters are not passed in.
• The first string is not greater than or equal to the second.

Deprecation Level

Active

Breaking Changes

None

Categories

• String Macros

Sample

Template

Set("Value1", "11")
Set("Value2", "9")
@if( GreaterOrEqual( Value("Value1"), Value("Value2") )
{
"Greater or equal on a numeric sort\n"
}
@else
{
"Less on a numeric sort\n"
}
@if( GreaterOrEqual( Value("Value1"), Value("Value2"), "ascii" )
{
"Greater or equal on an ASCII sort\n"
}
@else
{
"Less on an ASCII sort\n"
}

Result

Greater or equal on a numeric sort
Less on an ASCII sort

HasOwnees

Description

This will determine if the current context object has ownees of a given type.

Prototype

HasOwnees( [Type] )

Parameter	Status	Description
Type	Opt	The type of the ownee desired. If not type is specified, then the macro will succeed if the object has any ownees.

Result

This macro will fail in the following circumstances:

• There is no context object.
• There are no ownees of the specified type.

Deprecation Level

Active

Breaking Changes

None

Categories

• Object Macros

Sample

Assume the current context is a Key_Group.

Template

/* Only emit something if the key group has members. */
[HasOwnees( �Key_Group_Member� )
…
]

HasPropertyCharacteristic

Description

This determines if the specified property on the current context object has the specified characteristic.

If this macro is invoked against a phantom object, the results are undefined.

Prototype

HasPropertyCharacteristic( PropertyName, Characteristic )

Parameter	Status	Description
PropertyName	Req	The type name of the property.
Characteristic	Req	The name of the characteristic that is to be checked. Currently supported values are found below.

The characteristics available are found in the following table. The names are not case-sensitive.

"calculated" or "prefetch "

This characteristic is set when the property does not have a value of its own, but is calculated from other properties on the object.

"default "

This characteristic is set if the value in the property is a default value supplied by erwin Data Modeler.

"hardened"

This characteristic is set if the value in the property has been hardened against change. Currently, this is supported only for certain name properties on logical/physical objects, so this only has meaning when applied to the Name and Physical_Name properties of an Attribute, Default, Domain, Entity, Key_Group, Relationship or Validation_Rule. Future releases of erwin Data Modeler may extend hardening to more property types.

"autocalculated"

This characteristic is set when a property is in an auto-calculate state. Currently, this is supported only for the Cardinality property on the Relationship object. Future releases may extend this to other properties.

Result

This macro will fail in the following circumstances:

• The required parameters are not passed in.
• The characteristic is not set.

Deprecation Level

Active

Breaking Changes

None

Categories

• Property Macros

Sample

Template

/* Indicate if the physical name is hardened. */
ForEachOwnee("Attribute")
{
[HasPropertyCharacteristic("Physical_Name", "hardened")
"Column " Property("Physical_Name") "is hardened\n"
]
}

IncludeFile

Description

This loads the contents of a text file, then parses and evaluates it.

The file is expected to contain only TLX code, and the entire contents will be evaluated in one pass. The contents are expected to contain macro block delimiters. Contrast this with the Execute macro, which works on a file containing multiple TLX entries and where the entries do not contain macro block delimiters.

Prototype

IncludeFile( FileName )

Parameter	Status	Description
Fileame	Req	The name of the file. When specifying a path, remember that backslashes in literals must be escaped.

Result

This macro will fail in the following circumstances:

• The required parameters are not passed in.
• The specified source file is not found.

Deprecation Level

Active

Breaking Changes

None

Categories

• Include Macros

Sample

Assume a file, reusable_template.txt, had contents such as the following.

The entity's name is {# Property("Physical Name") #}.

Assume the current context is a table called E_1.

Template

IncludeFile( "c:\\reusable_template.txt" )

Result

The entity's name is E_1.

Increment

Description

This macro will increment the value in the specified variable. The variable is assumed to contain an integer value. If it does not, the value is coerced to zero and the increment occurs. If the variable does not exist, it is created first with a value of zero, then incremented.

Prototype

Increment( VariableName )

Parameter	Status	Description
VariableName	Req	The name of the variable.

Result

This macro will fail in the following circumstances:

• The required parameters are not passed in.

Deprecation Level

Active

Breaking Changes

None

Categories

• String Macros

Sample

Template

Set("Var1", "0")
Increment("Var1") Value("Var1") "\n"
Increment("Var1") Value("Var1") "\n"
Set("Var2", "foo")
Increment("Var2") Value("Var2") "\n"
Increment("Var3") Value("Var3")

Result

1
2
1
1

Integer

Description

This retrieves the value in the specified variable previously set by SetInteger.

Prototype

Integer( VariableName )

Parameter	Status	Description
VariableName	Req	The name of the previously defined variable.

Result

This macro will fail in the following circumstances:

• The specified variable is not found.

Deprecation Level

Deprecated

Use the Set and Value macros.

Breaking Changes

None

Categories

• String Macros

Sample

Template

SetInteger("Counter", "0")
Integer("Counter")

Result

0

IsCreated

Description

This macro will test whether the context object was created during the current session.

Prototype

IsCreated

Result

This macro will fail in the following circumstances:

• The context object was not created during the current session.

Deprecation Level

Active

Breaking Changes

None

Categories

Alter Macros

Sample

Assume that there are two Entity objects in the model, E_1 was reverse-engineered from the database and E_2 was newly-created. The current context is the model.

Template

ForEachOfType("Entity")
{
ListSeparator("\n")
@if ( IsCreated )
{
"CREATE TABLE " Property("Physical_Name") …
}
@else
{
"ALTER TABLE " Property("Physical_Name") …
}
}

Result

ALTER TABLE E_1 …
CREATE TABLE E_2 …

IsDefaultRITrigger

Description

This macro will test whether the current Trigger object is a erwin� Data Modeler-generated RI trigger.

Prototype

IsDefaultRITrigger

Result

This macro will fail in the following circumstances:

• The context object is not a erwin Data Modeler-generated RI Trigger object.

Deprecation Level

Active

Breaking Changes

None

Categories

• Object Macros

Sample

The following will retrieve the body of the trigger from the object if it is a default RI trigger. Otherwise, it will use a template to create the body.

Template

<@if ( IsDefaultRITrigger )
{
Property( "Trigger_Body", "no_translate" )
}
@else
{
FE::ExpandErwinMacro( "Trigger_Body" )
}
>

IsDeleted

Description

This macro will test whether the context object was deleted during the current session.

Prototype

IsDeleted

Result

This macro will fail in the following circumstances:

• The context object was not deleted during the current session.

Deprecation Level

Active

Breaking Changes

None

Categories

• Alter Macros

Sample-

Assume that table E_1 was deleted from the model.

Template

ForEachOfType("Entity", "all")
{
[ IsDeleted
"DROP TABLE " Property("Physical_Name")
]
}

Result

DROP TABLE E_1

IsGlobalFlagClear

Description

This macro will test whether a global flag is clear (not set). Global flags are set by the SetGlobalFlag macro. Flags are not case-sensitive.

Prototype

IsGlobalFlagClear( Flag )

Parameter	Status	Description
Flag	Req	The name of the flag to test.

Result

This macro will fail in the following circumstances:

• The required parameters are not supplied.
• The global flag is set.

Deprecation Level

Active

Breaking Changes

None

Categories

• Stack Macros

Sample

Template

/* Flag that the table is being recreated */
SetGlobalFlag( Property("Name") "created")
…
@if ( IsGlobalFlagClear( Property("Name") "created" ) )
{
"ALTER TABLE " …
}
@else
{
"/* ALTER not necessary */"
}

Result

/* ALTER not necessary */

IsGlobalFlagSet

Description

This macro will test whether a global flag has been set. Global flags are set by the SetGlobalFlag macro. Flags are not case-sensitive.

Prototype

IsGlobalFlagSet( Flag )

Result

This macro will fail in the following circumstances:

• The required parameters are not supplied.
• The global flag is not set.

Deprecation Level

Active

Breaking Changes

None

Categories

• Stack Macros

Sample

Template

/* Flag that the table is being recreated */
SetGlobalFlag( Property("Name") "created")
…
@if ( IsGlobalFlagSet( Property("Name") "created" ) )
{
"/* ALTER not necessary */"
}
@else
{
"ALTER TABLE " …
}

Result

/* ALTER not necessary */

IsLocalFlagSet

Description

This macro will test whether a local flag has been set for the current context object. Local flags are set by the SetLocalFlag macro. Flags are not case-sensitive.

Prototype

IsLocalFlagSet( Flag )

Parameter	Status	Description
Flag	Req	The name of the flag to test.

Result

This macro will fail in the following circumstances:

• The required parameters are not supplied.
• The local flag is not set.

Deprecation Level

Active

Breaking Changes

None

Categories

• Stack Macros

Sample

Template

SetLocalFlag( "MyFlag" )
[IsLocalFlagSet("MyFlag") "Flag was set #1.\n"]
PushOwner
[IsLocalFlagSet("MyFlag") "Flag was set #2.\n"]
Pop
[IsLocalFlagSet("MyFlag") "Flag was set #3."]

Result

Flag was set #1.
Flag was set #3.

IsMatch

Description

This macro will succeed if the specified value matches any item in a list. The comparisons are not case sensitive.

Prototype

IsMatch( Value, MatchValue0 [, MatchValue1 [, …] ] )

Parameter	Status	Description
Value	Req	The value to test for.
MatchValue	Req	The first value to compare against.
MatchValue1 � MatchValueN	Opt	Other values to compare against.

Result

This macro will fail in the following circumstances:

• The required parameters are not supplied.
• The Value parameter is not equal to any of the MatchValues.

Deprecation Level

Active

Breaking Changes

None

Categories

• String Macros

Sample

Assume the current context is a View object.

Template

[IsMatch( ObjectType, "Entity", "View", "Cached_View" )
"It's an entity-like object."
]

Result

It's an entity-like object.

IsModified

Description

This macro will test whether the context object was modified during the current session.

If exception properties are supplied as parameters, they will be ignored in considering whether or not the object was modified.

Prototype

IsModified( [ExceptionProperty1 [, ExceptionProperty2 [, …]]] )

Parameter	Status	Description
ExceptionProperty1 � ExceptionPropertyN	Req	Properties to ignore when considering modification status.

Result

This macro will fail in the following circumstances:

• The context object was not modified during the current session.

Deprecation Level

Active

Breaking Changes

None

Categories

• Alter Macros

Sample

Assume that table E_1 had its physical name modified.

Template

ForEachOfType("Entity")
{
@if( IsModified )
{
"Property("Physical_Name") " was modified.\n"
}
}

Result

E_1 was modified.

IsNotInheritedFromUDD

Description

This macro determines if domain (user-defined datatype) inheritance is present for a constraint. If Property is specified, the macro checks if the specified property is inherited. If Property is not specified, it checks to see if the Check_Constraint_Usage object is inherited.

Since inherited constraints and some properties are not present in the database, this macro allows determinations to be made if DROP statements should be created.

Prototype

IsNotInheritedFromUDD( [Property] )

Parameter	Status	Description
Property	Opt	The type name of the property.

Result

This macro will fail in the following circumstances:

• The required parameters are not passed in.
• The domain inheritance is not present..

Deprecation Level

Active

Breaking Changes

None

Categories

• Alter Macros

Sample

Template

/* If the column defines a default for itself, we need to do something. If it picks up the default from a user-defined datatype, we don't. */
[ IsNotInheritedFromUDD
"exec sp_binddefault " …
]

Result

The sp_binddefault will be emitted for columns that define their own defaults.

IsOwnerPropertyEqual

Description

This macro will succeed if the specified property has the specified value on the owning object of the current context object.

Prototype

IsOwnerPropertyEqual( Property, Value [, NotFoundValue] )

Parameter	Status	Description
Property	Req	The type name of the property.
Value	Req	The value to test for.
NotFoundValue	Opt	This should be set to 'true' or 'false' to indicate the desired return value if the property is not found. If this is not supplied, the macro will fail in this situation.

Result

This macro will fail in the following circumstances:

• The property is found and does not have the specified value.
• The property is not found and NotFoundValue is not set to "true".
• The current context object does not have an owner object.

Deprecation Level

Active

Breaking Changes

None

Categories

• Property Macros

Sample

Template

ForEachOwnee("Attribute")
{
[IsOwnerPropertyEqual("Oracle_Is_Temporary_Table", "true")
…
]
}
I

IsOwnerPropertyFalse

Description

This macro will succeed if the value in the property is a Boolean value of 'false' on the owning object of the current context object. Missing Boolean properties are assumed to be 'false'; use the NotFoundValue if this behavior is not desired.

Prototype

IsOwnerPropertyFalse( Property [, NotFoundValue] )

Parameter	Status	Description
Property	Req	The type name of the property.
NotFoundValue	Opt	If this is set to 'false' and the property does not exist, the macro will fail.

Result

This macro will fail in the following circumstances:

• The required parameters are not supplied.
• The property does not exist and NotFoundValue is set.
• The value in the property is not a Boolean.
• The value in the property is not 'false'.
• The current context object does not have an owner object.

Deprecation Level

Active

Breaking Changes

None

Categories

• Property Macros

Sample

Template

ForEachOwnee("Attribute")
{
[IsOwnerPropertyFalse("Oracle_Is_Temporary_Table", "true")
…
]
}

IsOwnerPropertyNotEqual

Description

This macro will succeed if the specified property does not have the specified value on the owning object of the current context object.

Prototype

IsOwnerPropertyNotEqual( Property, Value [, NotFoundValue] )

Parameter	Status	Description
Property	Req	The type name of the property.
Value	Req	The value to test for.
NotFoundValue	Opt	This should be set to "true" or "false" to indicate the desired return value if the property is not found. If this is not supplied, the macro will fail in this situation.

Result

This macro will fail in the following circumstances:

• The required parameters are not supplied.
• The property value equals Value.
• The property is not found and NotFoundValue is 'false' or not specified.
• The current context object does not have an owner object.

Deprecation Level

Active

Breaking Changes

None

Categories

• Property Macros

Sample

Template

ForEachOwnee("Attribute")
{
[IsOwnerPropertyNotEqual("Oracle_Is_Temporary_Table", "true")
…
]
}

IsOwnerPropertyTrue

Description

This macro will succeed if the value in the property is a Boolean value of 'true' on the owning object of the current context object.

Prototype

IsOwnerPropertyTrue( Property [, NotFoundValue] )

Parameter	Status	Description
Property	Req	The type name of the property.
NotFoundValue	Opt	If this is set to 'true' and the property does not exist, the macro will succeed.

Result

This macro will fail in the following circumstances:

• The required parameters are not supplied.
• The property does not exist and NotFoundValue is not set.
• The value in the property is not a Boolean.
• The value in the property is not 'true'.
• The current context object does not have an owner object.

Deprecation Level

Active

Breaking Changes

None

Categories

• Property Macros

Sample

Template

ForEachOwnee("Attribute")
{
[IsOwnerPropertyTrue("Oracle_Is_Temporary_Table", "true")
…
]
}

IsPropertyEqual

Description

This macro will succeed if the specified property has the specified value.

Prototype

IsPropertyEqual( Property, Value [, NotFoundValue] )

Parameter	Status	Description
Property	Req	The type name of the property.
Value	Req	The value to test for.
NotFoundValue	Opt	This should be set to 'true' or 'false' to indicate the desired return value if the property is not found. If this is not supplied, the macro will fail in this situation.

Result

This macro will fail in the following circumstances:

• The property is found and does not have the specified value.
• The property is not found and NotFoundValue is not set to "true".

Deprecation Level

Active

Breaking Changes

None

Categories

• Property Macros

Sample

Assume the context is the Subject_Area object containing the tables in the following illustration:

Template

ForEachReference("Referenced_Entities_Ref")
{
ListSeparator("\n")
Property("Physical_Name") " is "
[IsPropertyEqual("Type", "1") "Independent Entity"]
[IsPropertyEqual("Type", "6") "Dependent Entity"]
}

Result

E_1 is Independent Entity
E_2 is Dependent Entity

IsPropertyEqualFrom

Description

This macro will succeed if the specified property has the specified value on the first object in the context stack with the specified type.

Prototype

IsPropertyEqualFrom( ObjectType, Property, Value [, NotFoundValue] )

Parameter	Status	Description
ObjectType	Req	The object type.
Property	Req	The type name of the property.
Value	Req	The value to test for.
NotFoundValue	Opt	This should be set to 'true' or 'false' to indicate the desired return value if the property is not found. If this is not supplied, the macro will fail in this situation.

Result

This macro will fail in the following circumstances:

• The referenced object is not found.
• The property is found and does not have the specified value.
• The property is not found and NotFoundValue is not set to "true".

Deprecation Level

Active

Breaking Changes

None

Categories

• Property Macros

Sample

Assume that the context stack has the Relationship as the first entry and E_2 as the second:

Template

/* Is the relationship identifying? */
@if( IsPropertyEqualFrom("Relationship", "Type", "2" )
{
"It's identifying."
}

Result

It's identifying.

IsPropertyEqualThrough

Description

This macro will succeed if the specified property has the specified value on the object pointed to by the specified scalar reference property on the current context object.

Prototype

IsPropertyEqualThrough( Reference, Property, Value [, NotFoundValue] )

Parameter	Status	Description
Reference	Req	The reference property.
Property	Req	The type name of the property to query.
Value	Req	The value to test for.
NotFoundValue	Opt	This should be set to 'true' or 'false' to indicate the desired return value if the property is not found. If this is not supplied, the macro will fail in this situation.

Result

This macro will fail in the following circumstances:

• The referenced object is not found.
• The property is found and does not have the specified value.
• The property is not found and NotFoundValue is not set to "true".

Deprecation Level

Active

Breaking Changes

None

Categories

• Property Macros

Sample

Assume that the context is the relationship:

Template

/* Is the parent entity an independent entity? */
@if ( IsPropertyEqualThrough("Parent_Entity_Ref", "Type", "1" ) )
{
"It's independent."
}

Result

It's independent

IsPropertyFalse

Description

This macro will succeed if the value in the property is a Boolean value of 'false'. Missing Boolean properties are assumed to be 'false'; use the NotFoundValue if this behavior is not desired.

Prototype

IsPropertyFalse( Property [, NotFoundValue] )

Parameter	Status	Description
Property	Req	The type name of the property.
NotFoundValue	Opt	If this is set to 'false' and the property does not exist, the macro will fail.

Result

This macro will fail in the following circumstances:

• The required parameters are not supplied.
• The property does not exist and NotFoundValue is set.
• The value in the property is not a Boolean.
• The value in the property is not 'false'.

Deprecation Level

Active

Breaking Changes

None

Categories

• Property Macros

Sample

Assume the model contains three entities: E_1 is logical only, E_2 is physical only and E_3 is neither.

Template

ForEachOfType("Entity")
{
Property("Name") " is "
@if ( IsPropertyFalse("Physical Only") )
{
" present in the logical model."
}
@else
{
" not present in the logical model."
}
}

Result

E_1 is present in the logical model.
E_2 is not present in the logical model.
E_3 is present in the logical model.

IsPropertyFalseFrom

Description

This macro will succeed if the value in the property is a Boolean value of 'false' on the first object in the context stack with the specified type. Missing Boolean properties are assumed to be 'false'; use the NotFoundValue if this behavior is not desired.

Prototype

IsPropertyFalseFrom( Property [, NotFoundValue] )

Parameter	Status	Description
Property	Req	The type name of the property.
NotFoundValue	Opt	If this is set to 'false' and the property does not exist, the macro will fail.

Result

This macro will fail in the following circumstances:

• The referenced object is not found.
• The required parameters are not supplied.
• The property does not exist and NotFoundValue is set.
• The value in the property is not a Boolean.
• The value in the property is not 'false'.

Deprecation Level

Active

Breaking Changes

None

Categories

• Property Macros

Sample

Assume that the context stack has the Model on it somewhere.

Template

/* Are special characters disallowed? */
@if( IsPropertyFalseFrom("Model", "Allow_Special_Characters") )
{
…
}

IsPropertyFalseThrough

Description

This macro will succeed if the value in the property is a Boolean value of 'false' on the object pointed to by the specified scalar reference property on the current context object. Missing Boolean properties are assumed to be 'false'; use the NotFoundValue if this behavior is not desired.

Prototype

IsPropertyFalseThrough( Property [, NotFoundValue] )

Parameter	Status	Description
Property	Req	The type name of the property.
NotFoundValue	Opt	If this is set to 'false' and the property does not exist, the macro will fail.

Result

This macro will fail in the following circumstances:

• The referenced object is not found.
• The required parameters are not supplied.
• The property does not exist and NotFoundValue is set.
• The value in the property is not a Boolean.
• The value in the property is not 'false'.

Deprecation Level

Active

Breaking Changes

None

Categories

• Property Macros

Sample

Assume that the context is a Relationship.

Template

/* Is the child entity physical only? */
@if ( IsPropertyFalseThrough("Child_Entity_Ref",
"Is_Physical_Only") )
{
"It's not physical only."
}

IsPropertyModified

Description

This macro will test whether any of the specified properties on the context object were modified during the current session.

Prototype

IsPropertyModified( Property1 [, Property2 [, …]] )

Parameter	Status	Description
Property1 � PropertyN	Req	One or more property names.

Result

This macro will fail in the following circumstances:

• None of the specified properties on the context object were modified during the current session.

Deprecation Level

Active

Breaking Changes

None

Categories

• Alter Macros

Sample

Template

[IsPropertyModified("Parent_Relations_Ref")
Execute("Drop And Create View")
]

Result

Statements will be executed for each view that has new parent tables.

IsPropertyNotEqual

Description

This macro will succeed if the specified property does not have the specified value.

Prototype

IsPropertyNotEqual( Property, Value [, NotFoundValue] )

Parameter	Status	Description
Property	Req	The type name of the property.
Value	Req	The value to test for.
NotFoundValue	Opt	This should be set to "true" or "false" to indicate the desired return value if the property is not found. If this is not supplied, the macro will fail in this situation.

Result

This macro will fail in the following circumstances:

• The required parameters are not supplied.
• The property value equals Value.
• The property is not found and NotFoundValue is 'false' or not specified.

Deprecation Level

Active

Breaking Changes

None

Categories

Property Macros

Sample

Template

[IsPropertyNotEqual( "Null Option", "0" ) "not null"]

IsPropertyNotEqualFrom

Description

This macro will succeed if the specified property does not have the specified value on the first object in the context stack with the specified type.

Prototype

IsPropertyNotEqualFrom( Property, Value [, NotFoundValue] )

Parameter	Status	Description
Property	Req	The type name of the property.
Value	Req	The value to test for.
NotFoundValue	Opt	This should be set to "true" or "false" to indicate the desired return value if the property is not found. If this is not supplied, the macro will fail in this situation.

Result

This macro will fail in the following circumstances:

• The referenced object is not found.
• The required parameters are not supplied.
• The property value equals Value.
• The property is not found and NotFoundValue is 'false' or not specified.

Deprecation Level

Active

Breaking Changes

None

Categories

• Property Macros

Sample

Template

[IsPropertyNotEqualFrom("Attribute", "Null Option", "0") "not null"]

IsPropertyNotEqualThrough

Description

This macro will succeed if the specified property does not have the specified value on the object pointed to by the specified scalar reference property on the current context object.

Prototype

IsPropertyNotEqualThrough( Property, Value [, NotFoundValue] )

Parameter	Status	Description
Property	Req	The type name of the property.
Value	Req	The value to test for.
NotFoundValue	Opt	This should be set to "true" or "false" to indicate the desired return value if the property is not found. If this is not supplied, the macro will fail in this situation.

Result

This macro will fail in the following circumstances:

• The referenced object is not found.
• The required parameters are not supplied.
• The property value equals Value.
• The property is not found and NotFoundValue is 'false' or not specified.

Deprecation Level

Active

Breaking Changes

None

Categories

• Property Macros

Sample

Assume the context object is a Key_Group_Member.

Template

[IsPropertyNotEqualThrough("Attribute_Ref", "Null Option", "0") "not null"]

IsPropertyNotNull

Description

This macro will succeed or fail based upon the value in the specified property.

Prototype

IsPropertyNotNull( Property [, CheckCount] )

Parameter	Status	Description
Property	Req	The type name of the property.
CheckCount	Opt	If this is set to 'true', the macro will fail if the property does not have at least one value.

Result

This macro will fail in the following circumstances:

• The required parameters are not supplied.
• The value in the property is NULL.
• The property has no values and CheckCount is set to 'true'.

Deprecation Level

Active

Breaking Changes

None

Categories

• Property Macros

Sample

Assume the current context is a Subject_Area object with at least one member.

Template

[IsPropertyNotNull( "Referenced Entities" ) "has members"]

Result

has members

IsPropertyNull

Description

This macro will succeed or fail based upon the value in the specified property.

Prototype

IsPropertyNull( Property [, MissingValue] )

Parameter	Status	Description
Property	Req	The type name of the property.
MissingValue	Opt	By default, the macro will succeed if the property does not exist. If this parameter is specified as "false" the macro will fail if the property does not exist.

Result

This macro will fail in the following circumstances:

• The required parameters are not supplied.
• The value in the property is not NULL.
• The property does not exist and MissingValue is "false".

Deprecation Level

Active

Breaking Changes

None

Categories

• Property Macros

Sample

Assume the current context is an Attribute object created with in-place editing on the diagram (its Null_Option_Type property has not been set explicitly).

Template

[IsPropertyNull( "Null_Option_Type" ) "null"]

Result

null

IsPropertyReordered

Description

This macro will succeed determine if the specified property has been modified such that its values are reordered.

NB: This macro will returns undefined results when either the old or the new copy of the property contains duplicate values.

Prototype

IsPropertyReordered( Property [, Option1 [, Option2 [, …]]] )

Parameter	Status	Description
Property	Req	The type name of the property.
Option1 � OptionN	Opt	One or more option keywords. They can appear in any order and are not case-sensitive.

The options available are found in the following table.

"existing_only"

By default, the presence of a new value or the deletion of an old value will cause the macro to fail. If this option is specified, then the macro will only check to make sure that the remaining elements are in the same order relative to each other.

Result

This macro will fail in the following circumstances:

• The required parameters are not supplied.
• The value of the property has not been modified.
• The value of the property has had new elements added or existing elements removed and "existing_only" is not specified.

Deprecation Level

Active

Breaking Changes

None

Categories

• Alter Macros

Sample

Template

[IsPropertyReordered("Physical_Columns_Order_Ref")
Execute("Create Entity")
]

Result

If the order of the columns in a table has changed, the table will be recreated.

IsPropertyTrue

Description

This macro will succeed if the value in the property is a Boolean value of 'true'.

Prototype

IsPropertyTrue( Property [, NotFoundValue] )

Parameter	Status	Description
Property	Req	The type name of the property.
NotFoundValue	Opt	If this is set to 'true' and the property does not exist, the macro will succeed.

Result

This macro will fail in the following circumstances:

• The required parameters are not supplied.
• The property does not exist and NotFoundValue is not set.
• The value in the property is not a Boolean.
• The value in the property is not 'true'.

Deprecation Level

Active

Breaking Changes

None

Categories

• Property Macros

Sample

Assume the model contains three entities: E_1 is logical only, E_2 is physical only and E_3 is neither.

Template

ForEachOfType("Entity")
{
Property("Name") " is "
@if ( IsPropertyFalse("Is_Logical_Only") )
{
" present in the physical model."
}
@else
{
" not present in the physical model."
}
}

Result

E_1 is not present in the physical model.
E_2 is present in the physical model.
E_3 is present in the physical model.

IsPropertyTrueFrom

Description

This macro will succeed if the value in the property is a Boolean value of 'true' on the first object in the context stack with the specified type.

Prototype

IsPropertyTrueFrom( Property [, NotFoundValue] )

Parameter	Status	Description
Property	Req	The type name of the property.
NotFoundValue	Opt	If this is set to 'true' and the property does not exist, the macro will succeed.

Result

This macro will fail in the following circumstances:

• The referenced object is not found.
• The required parameters are not supplied.
• The property does not exist and NotFoundValue is not set.
• The value in the property is not a Boolean.
• The value in the property is not 'true'.

Deprecation Level

Active

Breaking Changes

None

Categories

• Property Macros

Sample

Assume that the context stack has the Model on it somewhere.

Template

/* Are special characters allowed? */
@if( IsPropertyTrueFrom("Model", "Allow_Special_Characters" ) )
{
…
}

IsPropertyTrueThrough

Description

This macro will succeed if the value in the property is a Boolean value of 'true' on the object pointed to by the specified scalar reference property on the current context object.

Prototype

IsPropertyTrueThrough( Property [, NotFoundValue] )

Parameter	Status	Description
Property	Req	The type name of the property.
NotFoundValue	Opt	If this is set to 'true' and the property does not exist, the macro will succeed.

Result

This macro will fail in the following circumstances:

• The referenced object is not found.
• The required parameters are not supplied.
• The property does not exist and NotFoundValue is not set.
• The value in the property is not a Boolean.
• The value in the property is not 'true'.

Deprecation Level

Active

Breaking Changes

None

Categories

• Property Macros

Sample

Assume that the context is a Relationship.

Template

/* Is the child entity physical only? */
@if ( IsPropertyTrueThrough("Child_Entity_Ref",
"Is_Physical_Only") )
{
"It's physical only."
}

IterationCount

Description

This evaluates to a count of the iterations performed by the first iterator on the iterator stack.

Prototype

IterationCount( [SuccessOnly] )

Parameter	Status	Description
SuccessOnly	Opt	By default, the absolute number of iterations is returned. If this is set to 'true' then a count of the iterations where the body was successfully expanded will returned.

Result

This macro will fail in the following circumstances:

• There is no iterator on the iterator stack.

Deprecation Level

Active

Breaking Changes

None

Categories

• Iterator Macros

Sample

Assume a model that has two Entity objects in it: E_1 and E_2.

Template

ForEachOfType("Entity")
{
ListSeparator("\n")
IterationCount " - " Property("Name")
}

Result

1 - E_1
2 - E_2

Left

Description

This macro evaluates to a substring comprised of the leftmost characters of the specified source string.

Prototype

Left( SourceString, Length )

Parameter	Status	Description
SourceString	Req	The source string.
Length	Req	The length of the desired substring.

Result

This macro will fail in the following circumstances:

• The required parameters are not passed in.
• The Length parameter cannot be evaluated to a number greater than or equal to '1'.

Deprecation Level

Active

Breaking Changes

None

Categories

• String Macros

Sample

Assume the context is the primary key of an Entity object.

Template

Switch( Left( Property("Key_Group_Type"), "2" ) )
{
Choose( "PK" )
{
"This is a primary key."
}
Choose( "AK" )
{
"This is an alternate key."
}
Default
{
"This is an inversion entry."
}
Choose( "XX" )
{
/* This block will never execute, because a preceding block
will always evaluate successfully */
}
}

Result

This is a primary key.

Less

Description

This determines if one value is less than another.

If the values are being compared as numbers, it assumes that the parameters passed are numeric values. In these cases, the macro stops reading a parameter when it encounters a character it cannot convert. If no characters are converted, the value is assumed to be zero. For example (assuming "ascii" is not specified):

"123"

123

"123Foo"

123

"Foo"

0

Prototype

Less( LeftString, RightString [, Option1 [, Option2 [, …]]] )

Parameter	Status	Description
LeftString	Req	The left value in the test.
RightString	Req	The right value in the test.
Option1 � OptionN	Opt	One or more option keywords. They can appear in any order and are not case-sensitive.

The options available are found in the following table.

"ascii"

By default, the strings are compared as numeric values. For example, "11" would compare as greater than "9".

If this parameter is set to "ascii " the strings are interpreted as case-sensitive literals (ASCII sort). This would cause "11" to compare as less than "9".

"no_case"

If this is set to "no_case" and the values are being compared in an ASCII sort, the strings are compared as strings in a case-insensitive manner. The default behavior is a case-sensitive comparison

Result

This macro will fail in the following circumstances:

• The required parameters are not passed in.
• The first string is not less than the second.

Deprecation Level

Active

Breaking Changes

None

Categories

• String Macros

Sample

Template

Set("Value1", "11")
Set("Value2", "9")
@if( Less( Value("Value1"), Value("Value2") )
{
"Less on a numeric sort\n"
}
@else
{
"Not less on a numeric sort\n"
}
@if( Less( Value("Value1"), Value("Value2"), "ascii" )
{
"Less on an ASCII sort\n"
}
@else
{
"Not less on an ASCII sort\n"
}

Result

Not less on a numeric sort
Less on an ASCII sort

LessOrEqual

Description

This determines if one value is less than or equal to another.

If the values are being compared as numbers, it assumes that the parameters passed are numeric values. In these cases, the macro stops reading a parameter when it encounters a character it cannot convert. If no characters are converted, the value is assumed to be zero. For example (assuming "ascii" is not specified):

"123"

123

"123Foo"

123

"Foo"

0

Prototype

LessOrEqual( LeftString, RightString [, Option1 [, Option2 [, …]]] )

Parameter	Status	Description
LeftString	Req	The left value in the test.
RightString	Req	The right value in the test.
Option1 � OptionN	Opt	One or more option keywords. They can appear in any order and are not case-sensitive.

The options available are found in the following table.

"ascii"

By default, the strings are compared as numeric values. For example, "11" would compare as greater than "9".

If this parameter is set to "ascii " the strings are interpreted as case-sensitive literals (ASCII sort). This would cause "11" to compare as less than "9".

"no_case"

If this is set to "no_case" and the values are being compared in an ASCII sort, the strings are compared as strings in a case-insensitive manner. The default behavior is a case-sensitive comparison

Result

This macro will fail in the following circumstances:

• The required parameters are not passed in.
• The first string is not less than or equal to the second.

Deprecation Level

Active

Breaking Changes

None

Categories

• String Macros

Sample

Template

Set("Value1", "11")
Set("Value2", "9")
@if( LessOrEqual( Value("Value1"), Value("Value2") )
{
"Less or equal on a numeric sort\n"
}
@else
{
"Greater on a numeric sort\n"
}
@if( Less( Value("Value1"), Value("Value2"), "ascii" )
{
"Less or equal on an ASCII sort\n"
}
@else
{
"Greater on an ASCII sort\n"
}

Result

Greater on a numeric sort
Less or equal on an ASCII sort

ListSeparator

Description

This macro is used inside of an iterator block. It evaluates to an empty string on the first loop of iteration. It evaluates to the value specified in String on subsequent loops. Loops are counted only if the loop block evaluates successfully.

Prototype

ListSeparator( String )

Parameter	Status	Description
String	Req	The separator string.

Result

This macro will fail in the following circumstances:

• The required parameters are not passed in.

Deprecation Level

Active

Breaking Changes

None

Categories

• Iterator Macros

Sample

Assume the current context is the Entity object in the following illustration:

Template

ForEachOwnee("Attribute")
{
ListSeparator( ",\n" )
Property( "Physical_Name" )
}

Result

a,
b,
c

Lookup

Description

This is a lookup macro that evaluates to a specified string based upon the value specified.

Replacement mappings are specified as value pairs in the parameter list. Values are compared case-insensitively.

Prototype

Lookup( Value [, Source0, Target0
[, Source1, Target1 [,…]]] [, Default] )

Parameter	Status	Description
Value	Req	The value to examine.
Source0	Opt	The first actual value to compare.
Target0	Opt	The value to return if Source0 is matched.
Source1 � SourceN	Opt	Subsequent values to compare.
Target1 � TargetN	Opt	The values to return if Source1 through SourceN are matched.
Default	Opt	The value to return if no other match is found.

Result

This macro will fail in the following circumstances:

• Required parameters are not supplied.
• The value is not found in the list of values and no default value is provided.

Deprecation Level

Active

Breaking Changes

None

Categories

• String Macros

Sample

Template

Lookup(Property("Null_Option_Type"), "0", "Null", "1", "Not Null")

LookupProperty

Description

This is a lookup macro that evaluates to a specified string based upon the value actually held in the specified property of the current context object.

Replacement mappings are specified as value pairs in the parameter list. Values are compared case-insensitively.

Prototype

LookupProperty( Property [, Source0, Target0
[, Source1, Target1 [,…]]] [, Default] )

Parameter	Status	Description
Value	Req	The value to examine.
Source0	Opt	The first actual value to compare.
Target0	Opt	The value to return if Source0 is matched.
Source1 � SourceN	Opt	Subsequent values to compare.
Target1 � TargetN	Opt	The values to return if Source1 through SourceN are matched.
Default	Opt	The value to return if no other match is found.

Result

This macro will fail in the following circumstances:

• Required parameters are not supplied.
• The specified property does not exist and no default value is provided.
• The actual value of the property is not found in the list of values and no default value is provided.

Deprecation Level

Active

Breaking Changes

None

Categories

• Property Macros

Sample

Assume the current context is the Entity object in the following illustration:

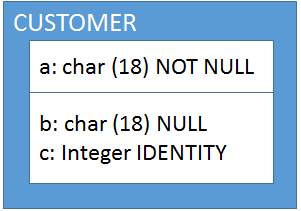

Template

ForEachOwnee("Attribute")
{
ListSeparator( ",\n" )
Property("Physical_Name") " is "
LookupProperty("Null_Option_Type", "0", "null", "1", "not null",
"8", "identity")
}

Result

a is not null
b is null
c is identity

Loop

Description

This iterator loops until a global flag is cleared.

Prototype

Loop( Flag )

Parameter	Status	Description
Flag	Req	The name of the global flag.

Result

This macro always succeeds.

Deprecation Level

Active

Breaking Changes

None

Categories

• Iterator Macros

Sample

Template

SetGlobalFlag("Continue")
Loop("Continue")
{
ListSeparator("\n")
@if ( Greater(IterationCount, "5") )
{
ClearGlobalFlag("Continue")
}
@else
{
IterationCount
}
}

Result

1
2
3
4
5

LowerCase

Description

This macro evaluates to the lower case version of a string.

Prototype

LowerCase( SourceString )

Parameter	Status	Description
SourceString	Req	The source string.

Result

This macro will fail in the following circumstances:

• The required parameters are not passed in.

Deprecation Level

Active

Breaking Changes

None

Categories

• String Macros

Sample

Assume the context object is E_1 in the following illustration:

Template

LowerCase( Property("Name") )

Result

e_1

Mid

Description

This macro evaluates to a substring of the specified source string.

Prototype

Mid( SourceString, Start, Length )

Parameter	Status	Description
SourceString	Req	The source string.
Start	Req	The zero-based starting position for the substring.
Length	Req	The length of the desired substring. If there are not enough characters in the source string to fulfill the Length specification, the macro will return the characters available. In non-Unicode versions of the product, the Length specification represents bytes. In other words, a character represented by a lead-byte and trail-byte would count as two.

Result

This macro will fail in the following circumstances:

• The required parameters are not passed in.
• The Start parameter is not '0' or greater, or the Length parameter is not '1' or greater.

Deprecation Level

Active

Breaking Changes

None

Categories

• String Macros

Sample

Assume the context object is the Entity in the following illustration:

Template

Mid(Property("Physical_Name", "0", "3")

Result

CUS

Modulo

Description

This predicate tests the modulo value of two numbers. The modulo is the remainder when Left is divided by Right.

Prototype

Modulo( Left, Right [, Remainder] )

Parameter	Status	Description
Left	Req	The numerator of the division.
Right	Req	The denominator of the division.
Remainder	Opt	By default, the macro succeeds if the remainder is '0'. If this value is specified, the macro succeeds if it matches the remainder.

Result

This macro will fail in the following circumstances:

• The required parameters are not passed in.

Deprecation Level

Active

Breaking Changes

None

Categories

• String Macros

Sample

In this sample, we want to insert a carriage return every three values. Since we placed the ListSeparator call before the output of the actual value (to avoid a trailing separator), we need to test based upon a modulo value of '1'…for example, "insert the carriage return before the fourth, seventh, and so on, value."

Template

SetGlobalFlag("Continue")
Loop("Continue")
{
ListSeparator([Modulo(IterationCount, "3", "1") "\n"])
@if ( Greater(IterationCount, "6") )
{
ClearGlobalFlag("Continue")
}
@else
{
IterationCount
}
}

Result

123
456

NotEqual

Description

This determines if one string is not equal to another.

Prototype

NotEqual( LeftString, RightString [, Option] )

Parameter	Status	Description
LeftString	Req	The left string in the test.
RightString	Req	The right string in the test.
Option	Opt	By default the comparison is case-sensitive. If this parameter is set to "no_case" the comparison will be done in a case-insensitive manner.

The options available are found in the following table.

"no_case"

By default the comparison is case-sensitive. If this option is set the comparison will be done in a case-insensitive manner.

Result

This macro will fail in the following circumstances:

• The required parameters are not passed in.
• The two strings are equal.

Deprecation Level

Active

Breaking Changes

None

Categories

• String Macros

Sample

Assume the context is the following table:

Template

@if( NotEqual(Property("Name"), "e_1") )
{
"Name is not exactly 'e_1'.\n"
}
@else
{
"Name is exactly 'e_1'.\n"
}
@if( NotEqual(Property("Name"), "e_1", "no_case") )
{
"Name is not case-insensitively like 'e_1'."
}

Result

Name is not exactly 'e_1'.

ObjectId

Description

This evaluates to the id of the current context object.

For M0 objects (data), this is just an integer that identifies it uniquely.

For M1 objects (metadata), the integer is also uniquely-identifying, but it is a packed combination of an identifier for the source of the metadata and a unique value for the object. For example, metadata defined by erwin Data Modeler will generally have a value of '1' or '0', erwin Data Modeler NSM metadata will have a value of '4', while UDPs will have a value of '9'.

The values for object ids are stable for a given session of erwin Data Modeler. However, they can change between sessions. If you need an identifier that is stable across sessions, use the value retrieved by:

Property("Long Id")

Prototype

ObjectId( [Option] )

Parameter	Status	Description
Option	Req	By default the entire id is returned. A component of the id can be retrieved by using one of the values found below.

"product "

Retrieve just the product identifier portion of the id for an M1 object. This has no effect for M0 objects.

"identifier"

Retrieve just the object identifier portion of the id for an M1 object. This has no effect for M0 objects.

Result

This macro will fail if:

• There is no context object.

Deprecation Level

Active

Breaking Changes

None

Categories

Miscellaneous Macros

Sample

Assume the context object is the Model object.

Template

ObjectId "\n"
ObjectId("product") "\n"
ObjectId("identifier") "\n"
PushMetaObject
ObjectId "\n"
ObjectId("product") "\n"
ObjectId("identifier")

Result

1
1
1
1075838978
1
2

ObjectType

Description

This evaluates to the type code name of the current context object.

Prototype

ObjectType

Result

This macro will fail in the following circumstances:

• There is no context object.

Deprecation Level

Active

Breaking Changes

None

Categories

Sample

Assume the current context is an Entity.

Template

[Equal(ObjectType, "Entity")
"This is an entity"
]

Result

This is an entity

OnceForObject

Description

This macro will attempt to set a global flag that is a concatenation of the Label parameter and the context object�s id. The macro will fail if this flag is already set. This allows a template to test for a previous emission of a given template for the object.

Prototype

OnceForObject( Label [, Option] )

Parameter	Status	Description
Label	Req	A label that will be used to distinguish the particular flag being set.
Option	Opt	An option keyword. They can appear in any order and are not case-sensitive.

The options available are found in the following table.

"no_set"

If this is present, then only the test of the existence of the flag is performed, but the flag is not set if it is not present.

Result

This macro will fail in the following circumstances:

• There is no context object.
• The flag has been set previously.

Deprecation Level

Active

Breaking Changes

None

Categories

• Stack Macros
• Object Macros

Sample

Assume the current context is an Entity.

Template

[OnceForObject("Create Table")
"First time"
]
[OnceForObject("Create Table")
"Second time"
]

Result

First time

OwnerProperty

Description

This macro evaluates to the string representation of the specified property on the object owning the current context object. A property is identified by its class name as defined in the metadata for erwin Data Modeler.

Prototype

OwnerProperty( PropertyName [, Option1 [, Option2 [, …]]] )

Parameter	Status	Description
PropertyName	Req	The type name of the property.
Option1 � OptionN	Opt	One or more option keywords. They can appear in any order and are not case-sensitive.

The options available are found in the following table.

"no_load"

By default, properties with the data type of 'Resource' will load and the macro will evaluate to the loaded value. If this value is provided, properties with this data type will evaluate to the resource identifier string instead of the resource value.

"no_translate"

By default, properties with a data type of 'Resource' will load and all other properties will be run through the default translator for their type. If this value is provided, the macro will evaluate to a raw value for the property. This is a superset of the "no_load" behavior.

"fail_if_empty"

If a parameter with the value of "fail_if_empty" is supplied, the macro will fail if the result is an empty string.

Result

This macro will fail in the following circumstances:

• The required parameters are not supplied.
• The "fail_if_empty" option is supplied and the result is an empty string.
• The current context object does not have an owning object.

Deprecation Level

Active

Breaking Changes

None

Categories

• Property Macros

Sample

Assume that the customer_number column in the following picture is the current context object:

Template

OwnerProperty(�Physical_Name�)

Result

CUSTOMER

OwnerQuotedName

Description

This macro evaluates to the string quoted name of the object owning the current context object.

Prototype

OwnerProperty( QuoteCharacter )

Parameter	Status	Description
QuoteCharacter	Opt	he quote character to be used. If this is not supplied, double quotes will be used..

Result

This macro will fail in the following circumstances:

• The current context object does not have an owning object.

Deprecation Level

Active

Breaking Changes

None

Categories

• Property Macros

Sample

Assume that the customer_number column in the following picture is the current context object:

Template

OwnerQuotedName

Result

"CUSTOMER"

Pad

Description

This macro evaluates to the source string padded to the specified length. The padding will be done by appending Character to the end of the string enough times to reach the desired length. If the source string is longer than the desired length, the entire source string will be returned.

Prototype

Pad( SourceString, Length[, Character] )

Parameter	Status	Description
SourceString	Req	The source string.
Length	Req	The desired length of the string.
Character	Opt	The character used for padding. If this is not specified, a space will be used.

Result

This macro will fail in the following circumstances:

• The required parameters are not passed in.

Deprecation Level

Active

Breaking Changes

None

Categories

• String Macros

Sample

Template

Pad("Hello", "10") "<\n"
Pad("Hello", "10", "*") "<\n"
Pad("Hello", "3") "<"

Result

Hello <
Hello*****<
Hello<

Pop

Description

This pops the current object from the context stack.

Prototype

Pop

Result

This macro will fail in the following circumstances:

• Only the anchor object is left on the stack.

Deprecation Level

Active

Breaking Changes

None

Categories

• Stack Macros

Sample

Assume the context object is the Entity in the following illustration:

Template

ForEachOwnee("Attribute")
{
ListSeparator("\n")
PushOwner Property("Name") Pop "." Property("Name")
}

Result

CUSTOMER.a
CUSTOMER.b
CUSTOMER.c

Progress_ColumnDecimals

Description

This evaluates to the decimal portion of the data type of the current object.

Prototype

Progress_ColumnDecimals

Result

This macro will fail in the following circumstances:

• The current context object does not have the Physical_Data_Type property.

Deprecation Level

Active

Breaking Changes

None

Categories

Sample

Assume the current context is an attribute with a data type of DECIMAL(5,3).

Template

Progress_ColumnDecimals

Result

"3"

Progress_ColumnFormat

Description

This checks if the column has a Display_Format object attached via the Display_Format_Ref property. If so, its Server_Value property is emitted. If not, and the data type of the column is "CHAR" the macro returns the precision.

Prototype

Progress_ColumnFormat

Result

This macro will fail in the following circumstances:

• There is no attached 'Display Format' object, the data type is not "CHAR" or there is no precision.

Deprecation Level

Active

Breaking Changes

None

Categories

Sample

Assume the current context is E_1.a in the following illustration:

Template

Progress_ColumnFormat

Result

"X(18)" Page

ProperCase

Description

This macro evaluates to the proper case version of a string, where the initial letter and letters following a space are converted to upper case, and all other letters are converted to lower case.

Prototype

ProperCase( SourceString )

Parameter	Status	Description
SourceString	Req	The source string.

Result

This macro will fail in the following circumstances:

• The required parameters are not passed in.

Deprecation Level

Active

Breaking Changes

None

Categories

• String Macros

Sample

Template

ProperCase("CUSTOMER")

Result

Customer

Property

Description

This macro evaluates to the string representation of the specified property on the current context object. A property is identified by its class name as defined in the metadata for erwin Data Modeler.

Prototype

Property( PropertyName [, Option1 [, Option2 [, …]]] )

Parameter	Status	Description
PropertyName	Req	The type name of the property.
Option1 � OptionN	Opt	One or more option keywords. They can appear in any order and are not case-sensitive.

The options available are found in the following table.

"no_load"

By default, properties with the data type of 'Resource' will load and the macro will evaluate to the loaded value. If this value is provided, properties with this data type will evaluate to the resource identifier string instead of the resource value.

"no_translate"

By default, properties with a data type of 'Resource' will load and all other properties will be run through the default translator for their type. If this value is provided, the macro will evaluate to a raw value for the property. This is a superset of the "no_load" behavior.

"fail_if_empty"

If a parameter with the value of "fail_if_empty" is supplied, the macro will fail if the result is an empty string.

Result

This macro will fail in the following circumstances:

• The required parameters are not supplied.
• The "fail_if_empty" option is supplied and the result is an empty string.

Deprecation Level

Active

Breaking Changes

The default behavior of this macro has changed since the erwin Data Modeler 7.1 release. The earlier version defaulted to 'no_translate' and 'no_load'.

Categories

• Property Macros

Sample

The difference in result when using the "no_translate" option is shown in the two example templates below. Assume that the CUSTOMER table in the following picture is the current context object.

Template

ForEachOwnee("Attribute")
{
Property("Name") " is "
Property("Null_Option_Type", "no_translate") "\n"
}
Result
customer_number is 1
customer_first_name is 0
customer_last_name is 0
…etc.
Template
ForEachOwnee("Attribute")
{
Property("Name") " is "
Property("Null_Option_Type") "\n"
}

Result

customer_number is NOT NULL
customer_first_name is NULL
customer_last_name is NULL
…etc.

PropertyFrom

Description

This macro evaluates to the string representation of the specified property on the first object in the context stack with the specified type. An object and a property are identified by their class names as defined in the metadata for erwin Data Modeler.

Prototype

PropertyFrom( ObjectType, PropertyName [, Option1 [, Option2 [, …]]] )

Parameter	Status	Description
ObjectType	Req	The type of the object desired.
PropertyName	Req	The type name of the property.
Option1 � OptionN	Opt	One or more option keywords. They can appear in any order and are not case-sensitive.

The options available are found in the following table.

"no_load"

By default, properties with the data type of 'Resource' will load and the macro will evaluate to the loaded value. If this value is provided, properties with this data type will evaluate to the resource identifier string instead of the resource value.

"no_translate"

By default, properties with a data type of 'Resource' will load and all other properties will be run through the default translator for their type. If this value is provided, the macro will evaluate to a raw value for the property. This is a superset of the "no_load" behavior.

"fail_if_empty"

If a parameter with the value of "fail_if_empty" is supplied, the macro will fail if the result is an empty string.

Result

This macro will fail in the following circumstances:

• The required parameters are not supplied.
• An object of the specified type is not found on the context stack.
• The "fail_if_empty" option is supplied and the result is an empty string.

Deprecation Level

Active

Breaking Changes

None

Categories

• Property Macros

Sample

See the sample under the Property macro for an example of the use of the "no_translate" option.

Assume that the CUSTOMER table in the following picture is the current context object:

Template

ForEachOwnee("Attribute")
{
PropertyFrom("Entity", "Name") "." Property("Name") "\n"
}

Result

CUSTOMER.customer_number
CUSTOMER.customer_first_name
CUSTOMER.customer_last_name
…etc.

PropertyThrough

Description

This macro evaluates to the string representation of the specified property on the object pointed to by the specified scalar reference property on the current context object. An object and a property are identified by their class names as defined in the metadata for erwin Data Modeler.

Prototype

PropertyThrough( ReferenceProperty, PropertyName [, Option1 [, Option2 [, …]]] )

Parameter	Status	Description
ReferenceProperty	Req	The reference property to use to locate the desired owning object.
PropertyName	Req	The type name of the property.
Option1 � OptionN	Opt	One or more option keywords. They can appear in any order and are not case-sensitive.

The options available are found in the following table.

"no_load"

By default, properties with the data type of 'Resource' will load and the macro will evaluate to the loaded value. If this value is provided, properties with this data type will evaluate to the resource identifier string instead of the resource value.

"no_translate"

By default, properties with a data type of 'Resource' will load and all other properties will be run through the default translator for their type. If this value is provided, the macro will evaluate to a raw value for the property. This is a superset of the "no_load" behavior.

"fail_if_empty"

If a parameter with the value of "fail_if_empty" is supplied, the macro will fail if the result is an empty string.

Result

This macro will fail in the following circumstances:

• The required parameters are not supplied.
• The referenced object is not found.
• The "fail_if_empty" option is supplied and the result is an empty string.

Deprecation Level

Active

Breaking Changes

None

Categories

Sample

Assume the context object is the Relationship in the following illustration:

Template

PropertyThrough("Parent_Entity_Ref", "Name" )

Result

E_1

PropertyValueCount

Description

This macro evaluates to the string representation of number of values in the property, zero if the property is null or missing.

Prototype

PropertyValueCount( Property )

Parameter	Status	Description
Property	Req	The type name of the property.

Result

This macro will fail in the following circumstances:

• The required parameters are not supplied.

Deprecation Level

Active

Breaking Changes

None

Categories

Sample

Assume the context object is a Subject_Area with three Entity objects in it.

Template

PropertyValueCount("Referenced_Entities_Ref")

Result

3

PropertyWithDefault

Description

This macro evaluates to the string representation of the specified property on the current context object. If the property does not evaluate successfully, a default value is returned.

Prototype

PropertyWithDefault( Property, Default [, Option1[, Option2 [, …]]] )

Parameter	Status	Description
Property	Req	The type name of the property.
Default	Req	The default value.
Option1- OptionN	Opt	One or more option keywords. They can appear in any order.

The options available are found in the following table.

"no_load"

By default, properties with the data type of 'Resource' will load and the macro will evaluate to the loaded value. If this value is provided, properties with this data type will evaluate to a resource identifier string.

"no_translate"

By default, properties with a data type of 'Resource' will load and all other properties will be run through the default translator for their type. If this value is provided, the macro will evaluate to a raw value for the property. This overrides the "no_load" option.

Result

This macro will fail in the following circumstances:

The required parameters are not supplied.

Deprecation Level

Active

Breaking Changes

The default behavior of this macro has changed since the erwin Data Modeler r7.1 release. The earlier version defaulted to 'no_translate' and 'no_load'.

Categories

Sample

Assume the model in the following illustration, which is shown in Definition Display Level:

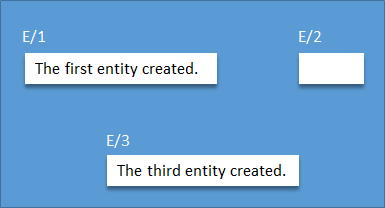

Template

ForEachOfType("Entity")
{
ListSeparator("\n")
Property("Name") "\t"
PropertyWithDefault("Definition", "<No definition>")
}

Result

E/1 The first entity created.
E/2 <No definition>
E/3 The third entity created.

PushFKViewRelationship

Description

This macro will push the contributing Relationship object if the current context object is a Key_Group on a View object.

Prototype

PushFKViewRelationship

Result

This macro will fail in the following circumstances:

• The current object is not a foreign key Key_Group on a View.

Deprecation Level

Active

Breaking Changes

None

Categories

• Stack Macros

Sample

Assume that the current context is the foreign key group created in V_1 in the following illustration:

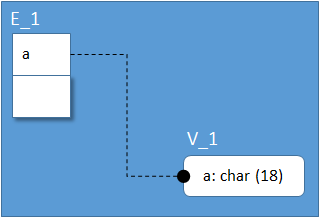

Template

PushFKViewRelationship
Property("Name")

Result

"E_1 R_1 V_1"

PushNewImage

Description

This macro is used when processing objects modified in the model, for example, during Alter Script processing in erwin Data Modeler. If the current object is a phantom object representing a previous state of the object, this macro will push the actual, current image of the object onto the context stack.

Prototype

PushNewImage

Result

This macro will fail in the following circumstances:

• The current process does not supply the template engine a previous image of the model.
• The current context object is not a phantom object representing a previous image of the object.
• The object no longer exists in the actual model.

Deprecation Level

Active

Breaking Changes

None

Categories

• Stack Macros

Sample

Assume that the Entity object CUSTOMER was renamed to CUST during the current session.

Template

/* With these parameters, the ForEachOfType iterator will push the
OLD image onto the context stack */
ForEachOfType("Entity", "modified")
{
"execute sp_rename '" Property("Physical_Name") "', '"
PushNewImage Property("Physical_Name") Pop "', 'OBJECT'\ngo"
}

Result

execute sp_rename 'CUSTOMER', 'CUST', 'OBJECT'
go

PushOldImage

Description

This macro is used when processing objects modified in the model, for example, during Alter Script processing in erwin Data Modeler. If the current object is a real object in the model (i.e., not a phantom object) this macro will push the previous image of the object onto the context stack.

Prototype

PushOldImage

Result

This macro will fail in the following circumstances:

• The current process does not supply the template engine a previous image of the model.
• The current context object is not a real object.
• The previous image of the model does not contain a previous image of the object.

Deprecation Level

Active

Breaking Changes

None

Categories

• Stack Macros

Sample

Assume the current context is an Entity object that was renamed from CUSTOMER to CUST during the session.

Template

"execute sp_rename '" PushOldImage Property("Physical_Name") Pop
"', '" Property("Physical_Name") "', 'OBJECT'\ngo"

Result

execute sp_rename 'CUSTOMER', 'CUST', 'OBJECT'
go

PushOwner

Description

This pushes the owner of the current context object onto the context stack.

this refers to the owning object, not the value of the DB Owner property.

Prototype

PushOwner

Result

This macro will fail in the following circumstances:

• The current context object has no owner.

Deprecation Level

Active

Breaking Changes

None

Categories

• Stack Macros

Sample

Assume that the context object is E_1 in the following illustration:

PushOwner Property( "Name" ) Pop

Template

ForEachOwnee("Attribute")
{
ListSeparator("\n")
[PushOwner Property("Name") "." Pop]Property("Name")
}

Result

E_1.a
E_1.b
E_1.c

PushReference

Description

This pushes the object referenced by the specified property of the current context object onto the context stack.

Prototype

PushReference( Property )

Parameter	Status	Description
Property	Req	The type name of the property.

Result

This macro will fail in the following circumstances:

• The reference property does not exist.
• The referenced object does not exist.

Deprecation Level

Active

Breaking Changes

None

Categories

• Stack Macros

Sample

Assume the context object is the Relationship in the following illustration:

Template

PushReference("Parent_Entity_Ref")
Property("Name")
Pop

Result

E_1

PushTopLevelObject

Description

This macro will push the top level object for the current context object onto the stack. The top level object is defined as the object for which a CREATE statement would be executed in SQL.

Prototype

PushTopLevelObject

Result

This macro will fail in the following circumstances:

• The current context object is not represented in the database.

Deprecation Level

Active

Breaking Changes

None

Categories

• Stack Macros

Sample

Assume that the Attribute object 'a' is the current context object.

Template

PushTopLevelObject
Property("Name")

Result

"E_1"

QuotedName

Description

This macro retrieves a name property from the current object and, based upon the current settings in the FE Option Set, quotes the name. For objects having both the 'Physical Name' and the 'Name' properties, the 'Physical Name' property will be read first. If that fails, the 'Name' property will be used. For all other objects, the 'Name' property will be used.

This macro is sensitive to the current FE Option Set. If quoting of names is disabled in the option set, the quotes will not be emitted.

Prototype

QuotedName( [QuoteCharacter] )

Parameter	Status	Description
QuoteCharacter	Opt	The quote character to be used. If this is not supplied, double quotes will be used.

Result

This macro always succeeds.

Deprecation Level

Active

Breaking Changes

None

Categories

• Property Macros

Sample

Assume the context object is E_1 in the following illustration, and the current FE Option Set has quoted naming enabled:

Template

QuotedName

Result

"E_1"

QuotedNameThrough

Description

This macro retrieves a name property from the object pointed to by the specified scalar reference property on the current context object and, based upon the current settings in the FE Option Set, quotes the name. For objects having both the 'Physical Name' and the 'Name' properties, the 'Physical Name' property will be read first. If that fails, the 'Name' property will be used. For all other objects, the 'Name' property will be used.

This macro is sensitive to the current FE Option Set. If quoting of names is disabled in the option set, the quotes will not be emitted.

Prototype

QuotedNameThrough( ReferenceProperty, [QuoteCharacter] )

Parameter	Status	Description
ReferenceProperty	Req	The reference property to use to locate the desired owning object.
QuoteCharacter	Opt	The quote character to be used. If this is not supplied, double quotes will be used.

Result

This macro always succeeds.

Deprecation Level

Active

Breaking Changes

None

Categories

• Property Macros

Sample

Assume the context object is the Relationship object in the following illustration, and the current FE Option Set has quoted naming enabled:

Template

QuotedNameThrough("Parent_Entity_Ref")

Result

"E_1"

Remove

Description

This removes the specified variable.

Prototype

Remove( VariableName )

Parameter	Status	Description
ValriableName	Req	The name of the previously defined variable.

Result

This macro will fail in the following circumstances:

• The specified variable does not exist.

Deprecation Level

Active

Breaking Changes

None

Categories

• String Macros

Sample

Template

Set("MyValue", "1")
["The value is now: " Value("MyValue")]
Remove("MyValue")
["The value is now: " Value("MyValue")]

Result

The value is now: 1

RemoveInteger

Description

This removes the specified variable.

Prototype

RemoveInteger( VariableName )

Parameter	Status	Description
VariableName	Req	The name of the previously defined variable.

Result

This macro will fail in the following circumstances:

• The specified variable does not exist.

Deprecation Level

Deprecated

Breaking Changes

None

Categories

• String Macros

Sample

Template

SetInteger("MyValue", "1")
["The value is now: " Integer("MyValue")]
RemoveInteger("MyValue")
["The value is now: " Integer("MyValue")]

Result

The value is now: 1

RemoveString

Description

This removes the specified variable.

Prototype

RemoveString( VariableName )

Parameter	Status	Description
VariableName	Req	The name of the previously defined variable.

Result

This macro will fail in the following circumstances:

• The specified variable does not exist.

Deprecation Level

Deprecated

Breaking Changes

None

Categories

• String Macros

Sample

Template

SetString("MyValue", "One")
["The value is now: " String("MyValue")]
RemoveInteger("MyValue")
["The value is now: " String("MyValue")]

Result

The value is now: One

Repush

Description

This pushes an object that already exists on the context stack onto the stack again.

Prototype

Repush( Depth )

Parameter	Status	Description
Depth	Req	The zero-based depth of the object in the context stack. The value provided must be greater than zero (zero indicates the current context object) and less than the size of the stack. The special value of "anchor" indicates that the anchor object should be pushed regardless of the stack's depth.

Result

This macro will fail in the following circumstances:

• The required parameters are not supplied.
• The Depth parameter does not evaluate to a number greater than or equal to '1' and is not the special value of "anchor".
• The depth specified by Depth is greater than the current size of the context stack.

Deprecation Level

Active

Breaking Changes

None

Categories

• Stack Macros

Sample

Assume the context object is the Relationship object in the following illustration. For sake of simplicity in the example, the template assumes that there is only one relation coming into E_2.

Template

PushReference("Child_Entity_Ref")
ForEachOwnee("Attribute")
{
ListSeparator("\n")
@if( IsPropertyNull("Parent_Attribute_Ref")
{
Property("Name") " is owned."
}
@else
{
Property("Name") " is migrated by "
Repush("2") Property("Name") Pop "."
}
}

Result

a is migrated by R_2.
b is owned.

RepushType

Description

This pushes an object that already exists on the context stack onto the stack again based upon the class type.

Prototype

Repush( Type )

Parameter	Status	Description
Type	Req	The type name of the object desired.

Result

This macro will fail in the following circumstances:

• The required parameters are not supplied.
• An object of the specified type was not found on the context stack.

Deprecation Level

Active

Breaking Changes

None

Categories

• Stack Macros

Sample

Assume the context object is E_1 in the following illustration:

Template

ForEachOwnee("Key_Group")
{
ListSeparator("\n")
ForEachOwnee("Key_Group_Member")
{
ListSeparator("\n")
Property("Name") " participates in a key group in "
RepushType("Entity") Property("Name") Pop
}
}

Result

a participates in a key group in E/1
b participates in a key group in E/1

Right

Description

This macro evaluates to a substring comprised of the rightmost characters of the specified source string.

Prototype

Right( SourceString, Length )

Parameter	Status	Description
SourceString	Req	The source string.
Length	Req	The length of the desired substring.

Result

This macro will fail in the following circumstances:

• The required parameters are not passed in.
• The Length parameter cannot be evaluated to a number greater than '1'.

Deprecation Level

Active

Breaking Changes

None

Categories

• String Macros

Sample

Template

Right("CUSTOMER", "3")

Result

MER

Separator

Description

This inserts the specified separator between a set of values. The separator will be inserted between any two values that are not empty strings.

Prototype

Separator( Separator, Value1 [, Value2 [,…] ] )

Parameter	Status	Description
Separator	Req	The separator to insert.
Value1	Req	The first value in the set.
Value2 � ValueN	Opt	The second through Nth value in the set.

Result

This will fail if:

• The required parameters are not supplied.

Deprecation Level

Active

Breaking Changes

None

Categories

• String Macros

Sample

Template

Separator(",", "", "A", "B", "", "C")

Result

A,B,C

Set

Description

This defines the specified variable and establishes its initial value. If the variable already exists, its value is modified.

Prototype

Set( VariableName, InitialValue )

Parameter	Status	Description
VariableName	Req	The name of the variable.
InitialValue	Req	The initial value of the variable.

Result

This macro always succeeds.

Deprecation Level

Active

Breaking Changes

None

Categories

• String Macros

Sample

Template

Set("My Counter", "1")
Value("My Counter")

Result

1

SetGlobalFlag

Description

This macro will set a flag. Flags are identified by a name and are not case-sensitive. Global flags are set for the entire duration of the template evaluation unless cleared.

Prototype

SetGlobalFlag( Flag )

Parameter	Status	Description
Flag	Req	The name of the flag to set.

Result

This macro will fail in the following circumstances:

• The required parameters are not supplied.

Deprecation Level

Active

Breaking Changes

None

Categories

Stack Macros

Sample

Template

/* Flag that the table is being recreated */
SetGlobalFlag( Property("Name") "created")
…
@if ( IsGlobalFlagSet( Property("Name") "created" ) )
{
"/* ALTER not necessary */"
}
@else
{
"ALTER TABLE " …
}

Result

/* ALTER not necessary */

SetInteger

Description

This defines the specified variable and establishes its initial value. If the variable already exists, its value is modified.

Prototype

SetInteger( VariableName, InitialValue )

Parameter	Status	Description
ValriableName	Req	The name of the variable.
InitialValue	Req	The initial value for the variable.

Result

This macro always succeeds.

Deprecation Level

Deprecated

Breaking Changes

None

Categories

• String Macros

Sample

Template

SetInteger("My Counter", "1")
Integer("My Counter")

Result

1

SetLocalFlag

Description

This macro will set a flag tied to the current context object. Flags are identified by a name and are not case-sensitive. When a context object is pushed down on the stack, its flags are not longer visible by the IsLocalFlagSet macro. When a context object is popped off the stack, its flags are discarded.

Prototype

SetLocalFlag( Flag [, Depth] )

Parameter	Status	Description
Flag	Req	The name of the flag to set.
Depth	Opt	This will set the named local flag on the stack entry Depth levels above the current entry.

Result

This macro will fail in the following circumstances:

• The required parameters are not supplied.

Deprecation Level

Active

Breaking Changes

None

Categories

• Stack Macros

Sample

Template

SetLocalFlag( "MyFlag" )
[IsLocalFlagSet("MyFlag") "Flag was set #1.\n"]
PushOwner
[IsLocalFlagSet("MyFlag") "Flag was set #2.\n"]
Pop
[IsLocalFlagSet("MyFlag") "Flag was set #3."]

Result

Flag was set #1.
Flag was set #3.

SetString

Description

This defines the specified variable and establishes its initial value. If the variable already exists, its value is modified.

Prototype

SetString( VariableName, InitialValue )

Parameter	Status	Description
ValriableName	Req	The name of the variable.
InitialValue	Req	The initial value of the variable.

Result

This macro always succeeds.

Deprecation Level

Deprecated

Breaking Changes

None

Categories

• String Macros

Sample

Template

SetString("MyValue ", "One")
String("MyValue ")

Result

One

ShouldGenerate

Description

This macro tests whether the current context object should generate, based upon both its properties and the current FE Option Set.

Prototype

ShouldGenerate

Result

This macro will fail in the following circumstances:

• The Generate property is associated with the object type by the metadata, but not set.
• The Is_Logical_Only property is set on the object.
• The object is built-in�the Built_In_Id property is set on the object.
• The object is filtered out by the current FE Option Set.

Deprecation Level

Active

Breaking Changes

None

Categories

• Miscellaneous Macros

Sample

Assume the model contains two Entity objects: E_1 is marked logical-only and E_2 is not.

Template

ForEachOfType("Entity")
{
ListSeparator("\n")
[ShouldGenerate
"Generate " Property("Name")
]
}

Result

E_2

String

Description

This retrieves the value in the specified variable previously set with SetString.

Prototype

String( VariableName )

Parameter	Status	Description
VariableName	Req	The name of the previously defined variable.

Result

This macro will fail in the following circumstances:

• The specified variable is not found.

Deprecation Level

Deprecated

Breaking Changes

None

Categories

• String Macros

Sample

Template

SetString("MyValue ", "One")
String("MyValue ")

Result

One

Substitute

Description

The macro evaluates to a string where one or more substrings are replaced with a new value.

Prototype

Substitute( SourceString, NewValue, OldValue1 [, OldValue2 [,…]] )

Parameter	Status	Description
SourceString	Req	The source string.
NewValue	Req	The new value to place into the string.
OldValue1	Req	The first substring to replace.
OldValue2- OldValueN	Opt	Additional substrings to replace.

Result

This macro will fail in the following circumstances:

• The required parameters are not passed in.

Deprecation Level

Active

Breaking Changes

None

Categories

• String Macros

Sample

Assume the context object is E_1 in the following illustration:

Template

/* Replace all spaces and tabs in the decription with underscores */
Substitute( Property("Description"), "_", " ", "\t" )

Result

The_first_entity_created.

Switch

Description

This macro, in conjunction with the Choose and Default macros, tests a predicate against a range of values and executes a block when a match is found.

Prototype

Switch( Predicate ) {}

Parameter	Status	Description
Predicate	Req	This parameter evaluates to the value that is to be tested.

Result

This macro will fail in the following circumstances:

• The required parameters are not passed in.

Deprecation Level

Active

Breaking Changes

None

Categories

• Miscellaneous Macros

Sample

Assume the context is the primary key of an Entity object.

Template

Switch( Left( Property("Key_Group_Type"), "2" ) )
{
Choose( "PK" )
{
"This is a primary key."
}
Choose( "AK" )
{
"This is an alternate key."
}
Default
{
"This is an inversion entry."
}
Choose( "XX" )
{
/* This block will never execute, because a preceding block
will always evaluate successfully */
}
}

Result

This is a primary key.

TableHasFilteredIndex

Description

This macro determines if the context Entity owns a KeyGroup with a WHERE clause marked to be generated.

Prototype

TableHasFilteredIndex

Result

This macro will fail in the following circumstances:

• The context object is not an Entity.
• The specified owned object cannot be found.

Deprecation Level

Active

Breaking Changes

None

Categories

None

Sample

Template

TableHasFilteredIndex

Result

Trim

Description

This macro evaluates to the source string trimmed of leading and trailing characters.

Prototype

Trim( SourceString [, TrimSet] )

Parameter	Status	Description
SourceString	Req	The source string.
TrimSet	Opt	The set of characters to trim. If this is not supplied, spaces and tabs are trimmed.

Result

This macro will fail in the following circumstances:

• The required parameters are not passed in.

Deprecation Level

Active

Breaking Changes

None

Categories

• String Macros

Sample

Template

Trim(" A string with extra spaces. ") "\n"
Trim(">>>A string with unwanted characters.<<<","<>")

Result

A string with extra spaces.
A string with unwanted characters.

UpperCase

Description

This macro evaluates to the upper case version of a string.

Prototype

UpperCase( SourceString )

Parameter	Status	Description
SourceString	Req	The source string.

Result

This macro will fail in the following circumstances:

• The required parameters are not passed in.

Deprecation Level

Active

Breaking Changes

None

Categories

• String Macros

Sample

Assume the context object is E_1 in the following illustration:

Template

ForEachOwnee("Attribute")
{
ListSeparator(", ")
UpperCase(Property("Name"))
}

Result

A, B

Value

Description

This retrieves the value in the specified variable.

Prototype

Value( VariableName )

Parameter	Status	Description
VariableName	Req	The name of the previously defined variable.

Result

This macro will fail in the following circumstances:

• The specified variable is not found.

Deprecation Level

Active

Breaking Changes

None

Categories

• String Macros

Sample

Template

Set("My Counter", "1")
Value("My Counter")

Result

1
