Viewing Workflows

You can view the assigned workflow to systems. A workflow assigned to a system is applicable to all the environments. For more information on managing metadata manager workflows, refer to the Managing Metadata Manager Workflows section.

To view the workflow assigned to systems, follow these steps:

  1. Go to Application Menu > Data Catalog > Metadata Manager.

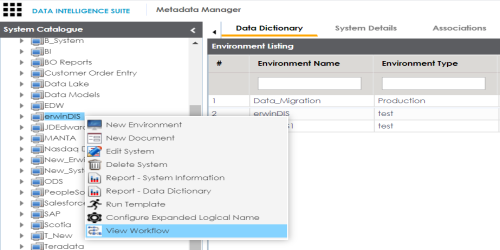

  2. Under the System Catalogue pane, right-click a system.
  3. Click View Workflow.

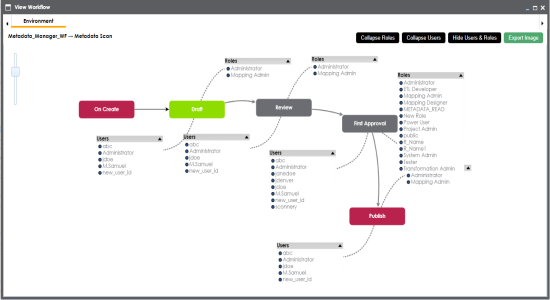

    4. The assigned workflow appears with users and roles corresponding to each stage of the workflow.

  4. Use the following options:
    Collapse Roles/Expand Roles
    You can collapse roles or expand roles for all the stages using this toggle button.
    Collapse Users/Expand Users
    You can collapse users or expand users for all the stages using this toggle button.
    Hide Users & Roles/Expand Users & Roles
    You can hide users and roles or expand users and roles for all the stages using this toggle button.
    Export Image
    You can download the workflow image in .jpg format using this button.
