A technical asset may act as a source, target, or both in mapping projects. Impact analysis of a technical asset displays the impact of the technical asset as source and target, and also display links to the source to target mappings. Additionally, impact analysis of tables and columns displays:
- Indirect impact (upstream and downstream)
- Other impacts (business rules, source extract SQL, and lookups)
To view impact of an asset, on the <Technical_Asset> tile or page, click Impact.

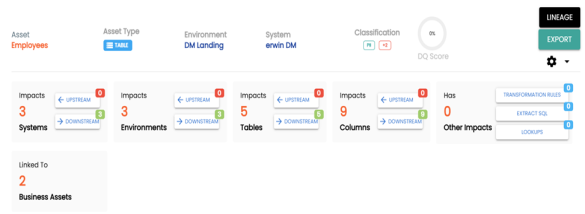

The asset impact page appears.

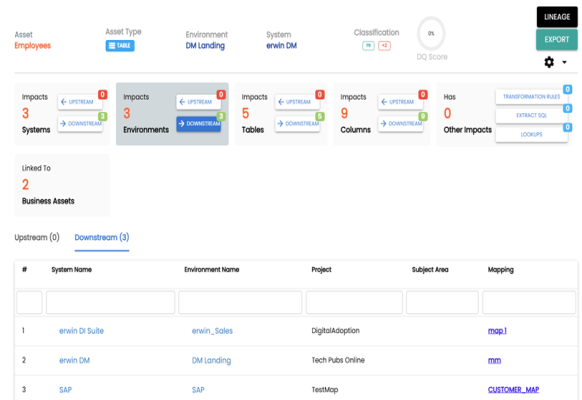

Dependent assets are linked to source and target mapping. Click a card to view upstream or downstream dependencies of the selected asset.

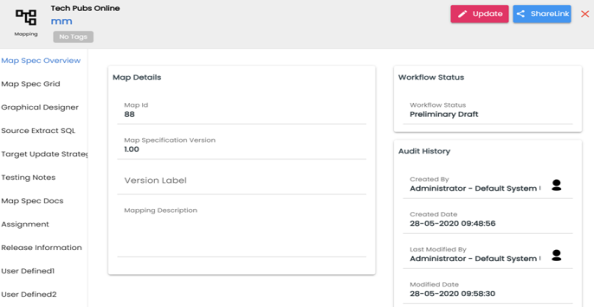

You can click the link under the Mapping column to view and update mappings.
For more information on working on impact of technical assets, refer to the Running Impact Analysis topic.
