XSD

You can import metadata from XSD files into XSD environments.

To import metadata from XSD files, follow these steps:

  1. On the Explore tab, click an XSD environment tile to view its details.
    Alternatively, in the Data Catalog pane, select the XSD option to view all XSD environments.
  2. Click Options.
    The available options appear.
  3. Click Scan Metadata.

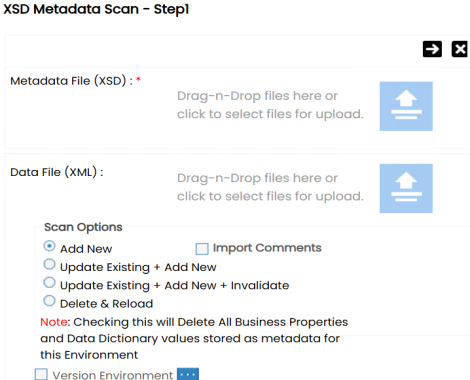

    4. The XSD Metadata Scan - Step1 page appears.

  4. Under the Metadata File [XSD] section, use to browse or drag and drop the metadata file with .xsd extension.
  5. Under the Data File [XML] section, use to browse or drag and drop the data file with .xml extension.
  6. Use the following scan options:
    Add New
    Use this option to insert new metadata into the environment.
    Update Existing + Add New
    Use this option to update the existing metadata based on tables and columns in the XSD file.
    Update Existing + Add New + Invalidate
    Use this option to update the existing metadata without deleting it.
    Delete & Reload
    Use this option to delete all the business properties and data dictionary stored as metadata for this environment.
    Import Comments
    Use this option to import comments from the XSD tables and columns into the environment.
    Skip Empty Cells
    Use this option to skip blank cells in the XSD file from overwriting existing values. This option is available only when you select the Update Existing + Add New or Update Existing + Add New + Invalidate option.
  7. Click .

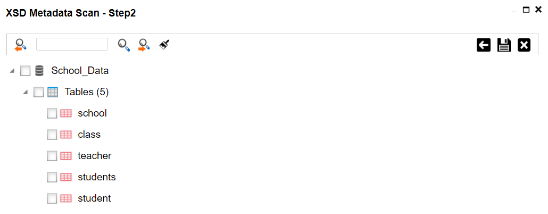

    8. The XSD Metadata Scan - Step2 page appears.

  8. Select the required tables.
  9. Click .

    10. The metadata is imported and saved in the environment.
