Configuring BUP Details

You can integrate erwin DI Business User Portal (BUP) with erwin Data Intelligence Suite (DI Suite). You can also select the erwin DI Suite modules that you want to access from the erwin DI BUP.

It is recommended that you install erwin DI BUP on the same machine where erwin DI Suite is installed.

Note: If erwin DI BUP and erwin DI Suite applications are installed on different machines, ensure that you copy ReportingManager and BusinessGlossaryManager folders from Apache Software Foundation > Tomcat > webapps > erwin DI Suite application and paste in C:\MappingManager.

Before you configure erwin DI BUP, ensure that you:

  • configure both the applications to use the same database.
  • integrate one instance of erwin DI BUP with only one instance of erwin DI Suite

To configure erwin DI BUP instance, follow these steps:

  1. Go to Application Menu > Miscellaneous > Settings > Miscellaneous > BUP Details.

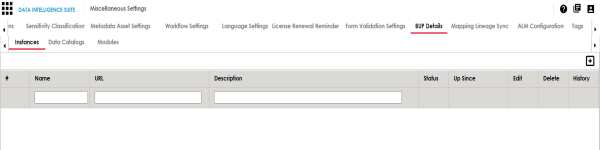

    2. The following page appears.

  2. Click .

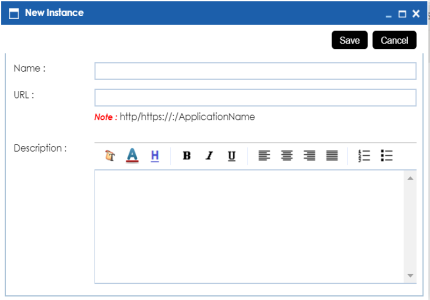

    3. The New Instance page appears.

  3. Enter a Name, URL, and Description of the BUP instance.

    4. For example:

    • Name - Business User Portal
    • URL - http://42.235.6.171:8080/BUP/login
    • Description - Business users can access modules of erwin DI Suite using the erwin DI BUP.
  4. Click Save.

    5. The erwin DI BUP instance is added to the instance list.

To select systems that you want to access from the erwin DI BUP, follow these steps:

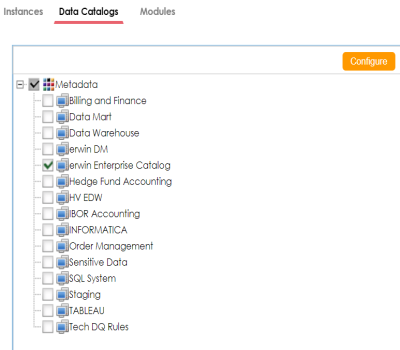

  1. Click the Data Catalogs tab.
  2. Click Configure.
  3. Select the required systems.
  4. Click Save.

    5. The selected systems can be accessed from the erwin DI BUP.

To select the modules that you want to access from the erwin DI BUP, follow these steps:

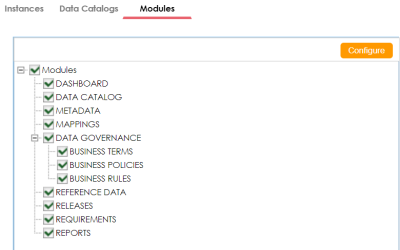

  1. Click the Modules tab.
  2. Click Configure.
  3. Select the required modules.
  4. Click Save.

    5. The selected modules can be accessed from the erwin DI BUP.

Once erwin DI BUP is integrated with erwin DI Suite, you can access the erwin DI BUP using the application URL or through erwin DI Suite. For more information on using erwin DI BUP, refer to the erwin DI BUP Bookshelf.
